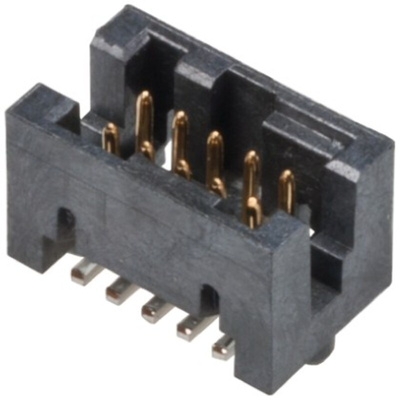

87409-105LF, Amphenol Communications Solutions Rib-Cage Series Straight Surface Mount PCB Header, 10 Contact(s), 1.27mm Pitch, 2, Штыревой разъем

RIB-CAGE PCB Pin Headers

These Board to Board FCI Rib-Cage™ multi-point SMT Pin Headers have PCB locators and square pins with 0.76 μm gold plating on the contact surfaces and tin plating on the soldering surfaces.

Part Numbers 87409-1**** have an above board height of 5.74 mm giving a mating height of 6.45 mm with the appropriate receptacle header.
Part Numbers 73547-1**** have an above board height of 9.25 mm giving a mating height of 9.93 mm with the appropriate receptacle header.

Note

For mating Receptacle Headers see stock number 714-2451 typical.

1.27mm Board to Board - FCI RIB-CAGE System

The FCI Rib-Cage System is a 1.27mm (0.050 in.) pitch dual row Board-to-Board connector system designed for extreme applications using mezzanine connections between printed circuit boards (PCB) or flexible printed circuits (FPC).

Ribcage Vert Shrouded Header Drawing
