09451511560, HARTING RJ Industrial Series Male RJ45 Connector, Cable Mount, Cat6, Разъем

HARTING RJ45 Connector

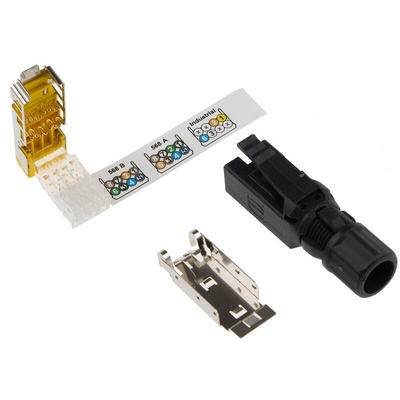

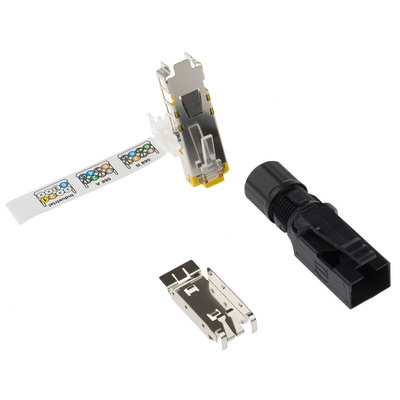

The HARTING RJ industrial series CAT6a male 10G RJ45 connector is a cable mount shielded plug. This is an 8-pole Ethernet data connector has a compact design. This compact connector set can field assembled using HARAX for quick tool-less IDC termination. It has a mating face and a data transmission rate of 1/10Gb Ethernet. Its housing is made from black polyamide and fully shielded with a 360° contact.
Note:
Cable not included

Features and Benefits

Excellent quality
Highly reliable
Mating cycles are greater than or equal than 750
Maximum conductor diameter is 1.6mm
Number of ways are 8
Temperature ranges between -40°C and 70°C

CertifiCATions

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
EN 50173-1
IEC 11801
IP20 rated

Harting RJ Industrial 10G Brochure

09451511560 datasheet

Assembly Instructions
