Tektronix Oscilloscope Probes

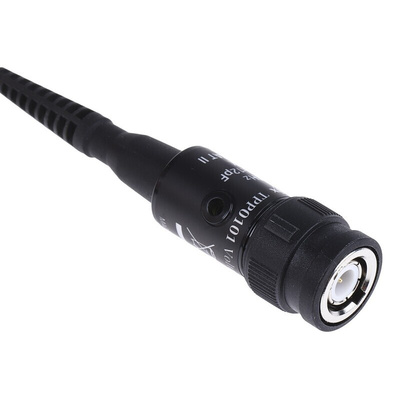

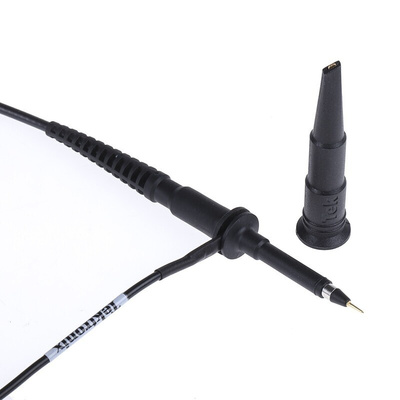

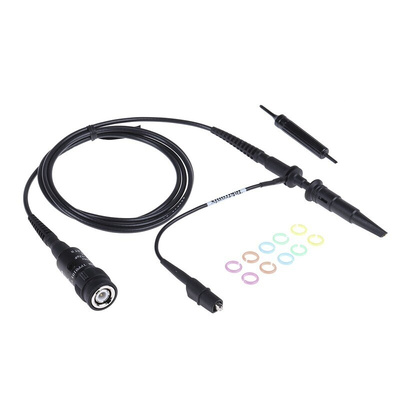

The Tektronix passive voltage oscilloscope probe is used on BNC oscilloscopes with 1Mohm/13pF input. It has an attenuation of 10X with 10Mohm input resistance.
It is high-quality passive voltage probes suitable for general purpose replacements. Each probe features compensation trimmers to allow matching to instruments.
Note:
All the products in this range are supplied for use with instruments with a permanent earth connection.
Features and Benefits
Bandwidth is DC to 100MHz
Attenuation ratio is 1:10
Input impedance is 10Mohmll12pF
Rise time is 3.5ns
Length is 1.3m
Maximum common mode input voltage is 300KV
Maximum Input voltage is 300VRMS CAT II
Wide compensation ranges between 15pF and 25pF
Applications
Relative low frequency measurements
Low frequency computer and telecom measurements
Power supply
Low frequency amplifiers
Certifications
UL61010-031 approved
2007, CAN/CSA C22.2 No. 61010-031-07 certified
IEC61010-031
IEC 61010-031/A1:2008
CAT II 300Vrms
CAT I 400Vrms
