PT-104 High-accuracy data logger

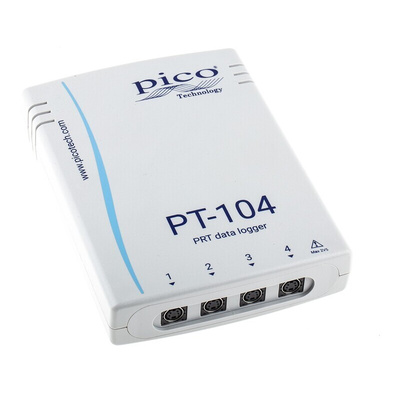

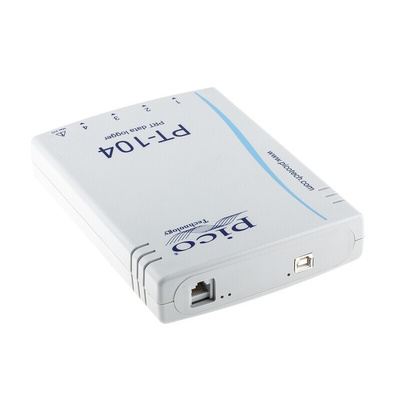

The Pico Technology USB PT-104 is a 4-channel precision temperature measuring data logger for PC. It uses platinum resistance thermometers (PRTs for measuring temperature. A high-performance 24-bit ADC offers the ultimate resolution (0.001°C) and accuracy (0.01°C). Along with temperature, it can also be used to measure resistance and voltage.

Features and Benefits

High resolution and accuracy
Works with PT100 and PT1000 sensors
Supports 2-wire, 3-wire and 4-wire sensors
Uses calibrated reference resistors for stability
Supplied with PicoLog data logging software
USB interface ensures easy installation
Ethernet interface for remote operation
Powered by USB port or Power-over-Ethernet (PoE)
Operating temperature ranges between 0°C and 70°C

Applications

Food industry
Automotive
Pharmaceutical industry

Now with PicoLog Cloud®

Building on the proven design of PicoLog 6, PicoLog Cloud is a free upgrade that introduces many great new features that expand how your Pico data logger can be used.

PicoLog Cloud allows all current Pico data loggers and real-time scopes to capture data either direct to a local memory drive or stream the captured data to a secure online Cloud store, and can then be shared via a link to any browser on a PC, phone or tablet, anywhere in the world. In addition, an API can be used that allows live capture data to be transferred from the Cloud to a 3rd party database or program.
