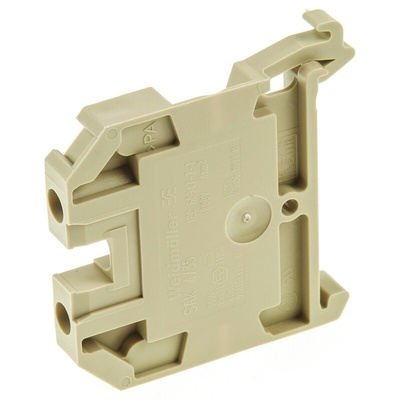

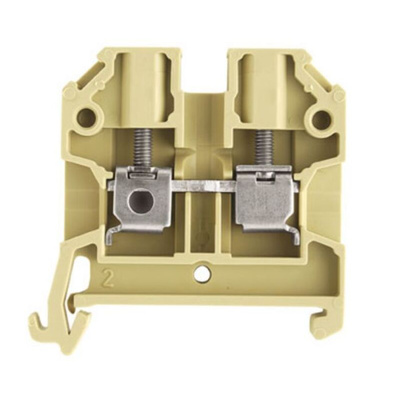

0443660000, Weidmuller SAK Series Beige Feed Through Terminal Block, 4mm², Single-Level, Screw Termination, IECEx

Weidmuller Feed-Through Terminal Block, 32A Current Rating, 12mm Stripping Length - SAK Series - 0443660000

Need to connect two circuits on a DIN rail? Get wired up with this Weidmuller feed-through terminal block. It's as easy as pushing one wire into the input terminal and the other into the output before tightening the screws to complete the connection. This device simply snaps onto the rail to allow for a simple, speedy set-up. Thanks to its impact-resistant PA body, this hardy component can take a knock.

• Small size of 45 (H) x 6.5 (W) x 44mm (D) for squeezing into tight spaces
• Broad operating temperature range between -50°C and +100°C for use in harsh environments
• Light weight of 8.6g to place minimal strain on your DIN rail

Applications

• Domestic circuitry
• Industrial signalling
• Automation and control networks

Is this product safe to use in high-voltage electrical systems?

Yes, a voltage rating of 800V means you can count on it in high-power systems. It also has a rated impulse withstand voltage of 8kV for enhanced safety in the event of powerful spikes in voltage.

SAK Series

Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

Datasheet
