1-120534-1, TE Connectivity FH Series Male Backplane Connector, Surface Mount, 64-Contacts, 16mm Pitch, 2-Row, Solder Termination, Разъем

TE Connectivity 1.0mm Free Height (FH) IEEE 1386 Plug and Receptacle Connectors

Free Height (FH) IEEE 1386 SMT parallel stacking plug and receptacle connectors with high density packaging on a 1.0mm centreline for use in mezzanine board stacking applications. These Free Height (FH) IEEE 1386 stacking connectors have black UL 94V-0 thermoplastic housings, gold plated contacts and locating posts (apart from stock numbers 680-5261, 680-5264 and 720-1304) that enable accurate placement by hand or machine. Each of these Free Height (FH) IEEE 1386 connectors can achieve various stacking heights dependent on the mating connector that is selected, please refer to datasheet for details.

Standards

Meets EIA-700 AAAB specifications for IEEE 1386 applications

Approvals

UL 94V-0

1.0mm TE Connectivity IEEE 1386 Connectors

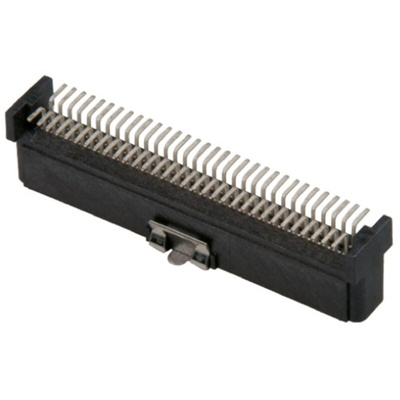

Connector Plug 64 way 2 row 1mm FH
