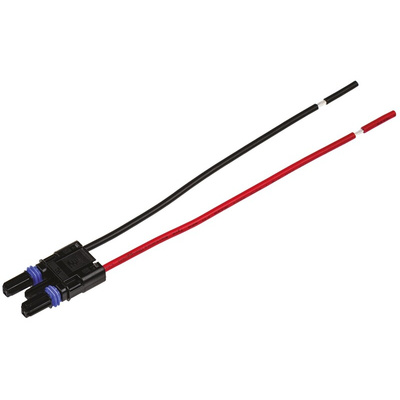

2106378-2, TE Connectivity SlimSeal SSL Series Cable Assembly, Male, 2-Way, IP67

SlimSeal SSL Solid State Lighting Connectors - Cable Plug and Receptacle Assemblies

SlimSeal SSL solid state lighting cable and plug receptacle assemblies with a 3.50mm centreline for wire to wire applications. These SlimSeal SSL solid state lighting cable and plug receptacle assemblies are made from black UL 94V-0 polycarbonate GF with keying, positive integral latching and integrated IP67 silicone rubber seals and will accept a wire size of 18 AWG. The cable length for these SlimSeal SS plug and receptacle assemblies is 101.60mm. The SSL cable plug assemblies are preloaded with tin plated copper alloy socket contacts and the SSL receptacle plug assemblies are preloaded with tin plated brass tab contacts.

TE Connectivity connector

The TE connectivity connector is a SlimSeal SSL series, male, 2-way cable assembly with a 0.1m cable. It has an electrical rating of 250VAC/VDC. The lighting cable and plug receptacle assemblies with a 3.50mm centreline for wire-to-wire applications. These lighting cable and plug receptacle assemblies are made from black UL 94V-0 polycarbonate GF with keying, positive integral latching and integrated IP67 silicone rubber seals and will accept a wire size of 18 AWG. The SSL cable plug assemblies are preloaded with tin-plated copper alloy socket contacts and the SSL receptacle plug assemblies are preloaded with tin-plated brass tab contacts. These connectors are useful in outdoor and commercial refrigeration Lighting applications

Features and Benefits

• Durability : 30 mating cycles
• Operating temperature ranges between -40°C and 105°C
• Polarised connections eliminates the possibility of mismating connectors
• Positive integral latching prevents inadvertent unmating of connectors
• Preassembled seals and wire guides reduces assembly time
• SMT and through-hole versions permits assembly to SMT metal clad and FR4 through-hole pc boards

Certifications

• CSA C22.2 No. 182.3
• IP67 rated
• UL 1977 listed
• UL 746C F1
