AMPLIMITE D-Sub Connector, Series 90, Military Spec, Mil-C-24308 and Mil-C-39029 Contacts
AMPLIMITE size 22 crimp snap-in pin and socket contacts for AMPLIMITE series 90 Mil-C-24308 military spec d-sub connectors. These size 22 crimp snap-in pin and socket contacts are made from gold plated copper alloy with a 0.030mm post diameter and accept a wire size of 0.08 to 0.40mm2 (AWG 28-22) and an insulation diameter of 0.054mm.

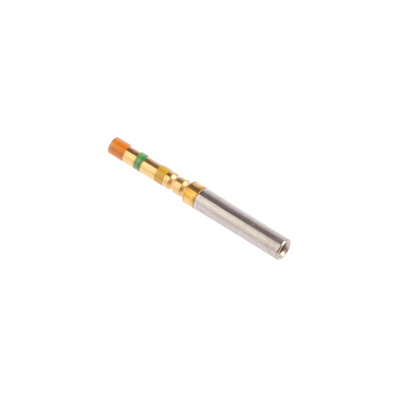

The TE Connectivity 204351-1 is a socket contact from the SZ-22 series. It is designed for use with the AMPILITE range. This crimp contact is made from nickel with gold plating. It is designed to snap-fit into your chosen housing for easy assembly. The contact is then crimped to a wire with a size of 0.08-0.4mm² (28-22AWG).
• Contact size: 22
• 5A contact current rating
• Post diameter: 0.03 mm
TE Connectivity AMPLIMITE D-Subminiature Connectors
Техническая спецификация
