204370-2, TE Connectivity, AMPLIMITE 90 Series Series, size 22 Male Crimp D-sub Connector Contact, Gold over Nickel Signal, 28, Контакты

AMPLIMITE D-Sub Connector, Series 90, Military Spec, Mil-C-24308 and Mil-C-39029 Contacts

AMPLIMITE size 22 crimp snap-in pin and socket contacts for AMPLIMITE series 90 Mil-C-24308 military spec d-sub connectors. These size 22 crimp snap-in pin and socket contacts are made from gold plated copper alloy with a 0.030mm post diameter and accept a wire size of 0.08 to 0.40mm² (AWG 28-22) and an insulation diameter of 0.054mm.

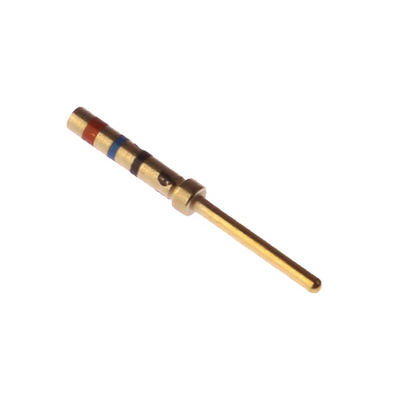

The TE Connectivity 204370-2 is a pin contact from the HDP-22 series. This crimp contact is made from nickel with gold plating. It is designed to snap-fit into your chosen housing for easy assembly. The contact is then crimped to a wire with a size of 0.08-0.4mm² (28-22AWG).

• Contact size: 22
• 5A contact current rating
• Pin diameter: 0.03 mm

Versions Available:
(135-5174) – bag of 1000
(718-4004) – single

TE Connectivity AMPLIMITE D-Subminiature Connectors

Contact male crimp 28-22AWG Amplimite
