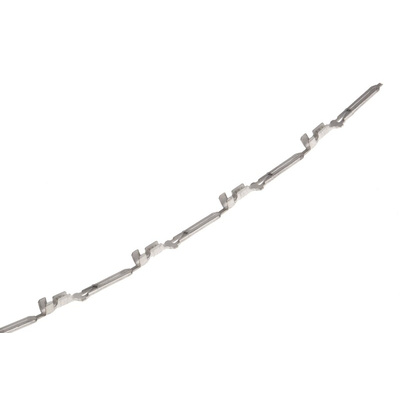

160174-2, TE Connectivity, FASTIN-FASTON .110 Uninsulated Spade Connector, 2.79 x 0.79mm Tab Size, 0.3mm² to 0.56mm², Контакты

7188166
Номер производителя: 160174-2Производитель: TE Connectivity
Цена за шт. (норма упаковки 50 шт)
30.00 руб. (С НДС) *
Количество 50+
Цена 30.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TE Connectivity FASTIN FASTON Series 110 Quick Connect Tab Crimp Terminals

FASTIN FASTON 110 series quick connect crimp tab terminals that offer speed of application and uniform reliability. These FASTIN FASTON 110 tab terminals share the same product technology as the FASTON 110 crimp tabs which assure a stable electrical & mechanical performance. The difference between the FASTIN-FASTON tabs and FASTON tabs is the addition of a locking lance that ensures secure retention of the terminal when snapped into the housing. The tab terminal also features a hole which the mating FASTIN-FASTON terminal locks on to. Each FASTIN FASTON 110 terminal has precisely controlled crimping specifications which allow all connections to perform as specified. For the optimum combination of mechanical strength and electrical conductivity these FASTIN FASTON 110 tabs are applied to the conductor using the match-mated application crimp tooling which can be purchased separately. The "F" style crimp terminations offer precise tensile strength and conductivity that will last the life of the circuit. This method of termination also offers maximum resistance to vibration and corrosion.

Features and Benefits

• Quick application to conductor with use of correct tooling
• Locking lances for secure retention in housing
• Precisely controlled crimping specifications for uniform reliability
• Stable electrical and mechanical performance
• Precise tensile strength and conductivity
• Maximum resistance to vibration and corrosion

Applications

These FASTON 250 crimp tabs are commonly used in the appliance and automotive industry. Applications include electric ranges, washers, dryers and automotive harness wiring.

Техническая спецификация
pdfTerminal Tab 2.79mm 22-20AWG Fastin-on
Maximum Wire Size mm²:
0.56мм²
Minimum Wire Size mm²:
0.3мм²
Длина общая:
22мм
Изоляционный:
Uninsulated
Концевая заделка:
Crimp
Максимальный размер провода AWG:
20AWG
Материал контактов:
Латунь
Минимальный размер провода AWG:
22AWG
Покрытие контактов:
Олово
Размер ярлычка:
2.79 x 0.79мм
Род:
Male
Серия:
FASTIN-FASTON .110
Толщина ярлычка:
0.79мм
Ширина ярлычка:
2.79мм
