450A920, Seaward Clare H101, Flash Tester, 1000V, 999.9MΩ, Измеритель сопротивления изоляции

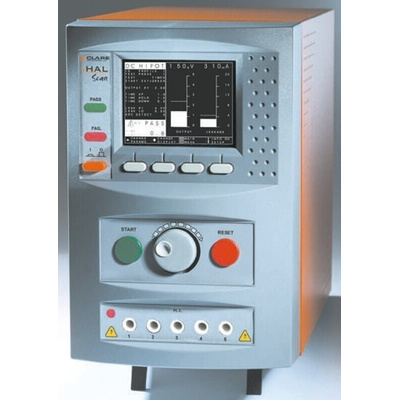

HAL 101

The HAL 101 offers simple straightforward operation in a factory test or lab/compliance environment. Providing simple manual testing or complete automated operation, equipment can be tested quickly and safely.

Fast automatic production testing using sequence capability
Performs a.c./d.c. Flash and d.c. IR tests
Fully isolated HT outputs for safe, high current flash testing complying with electrical safety testing standard, EN 50191
Internal storage of up to 6000 test results and test sequences
Graphical representation of test voltage and pass fail limits on a 320 x 240 VGA graphical LCD
Single button operation with simple PASS/FAIL indication
Provides bar-code read facility for control of inventory
Prints product ID and test reports, when connected to a printer
Connects to external, high visibility status beacons
Compatible with the BrainCell equipment tagging system (stock No. 409-9341)

Supplied with

HT probe (Yellow), HT clip lead, Guard Plug, UK mains lead.

Seaward Clare Insulation and Ground Bond Tester

The Seaward Clare H101 HAL series 1kV insulation and ground bond tester offers an outstanding level of flexibility and functionality to dramatically improve the quality and productivity of production line safety testing. It has a range of different tests and functionality, which provides a solution for any production line testing requirement from low volume manual testing through to high volume automated test programmes. A choice of automatic, manual or direct PC modes offers maximum flexibility for use and control of the tester. Fully isolated HT outputs for safe, high current flash testing complying with electrical safety testing standard.
Supplied with
HT probe (Yellow), HT clip lead, Guard Plug, UK mains lead.

Features and Benefits

Earth Bond Test
AC / DC Flash / Hipot Test
Insulation Resistance
Scanner
Arc Detection
Visual Alarm
Audible Alarm
Storage of test results
Predefined and custom test sequences
PLC interface
Fast automatic production testing using sequence capability
Internal storage of up to 6000 test results and test sequences
Graphical representation of test voltage and pass fail limits on a 320 x 240 VGA graphical LCD
Operating Temperature between 0°C and 40°C
Single-button operation with simple PASS/FAIL indication
Compatible with the BrainCell equipment tagging system
Provides bar-code read facility for control of inventory
Prints product ID and test reports, when connected to a printer
Connects to external, high visibility status beacons

Applications

Cables
Transformers
Motors/generators
Circuit breakers
Bushings

Certifications

EN50191
IEC/EN 60990
