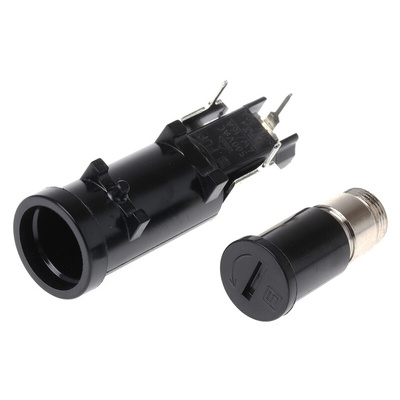

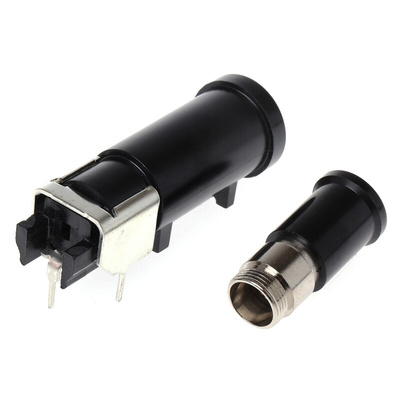

0031.2520, Schurter 16A PCB Mount Fuse Holder for 6.3 x 32mm Fuse, 500V ac, Держатель предохранителя

Schurter Fuse Holder FUP IP40

The FUP fuseholder from SCHURTER offers a shock-safe fuseholder for PCB mount approved for currents up to 16A (VDE) or 20A (UL). It has a 4W-rated power acceptance at 16A and an ambient temperature of 23° C, and is suitable for installation in equipment having protection classes I and II in accordance with IEC 61140. Applications for the FUP fuseholder can be found in all electronic areas, in particular for primary circuit protection in power and household electronics, measuring and control engineering and other industrial equipment.

Slotted PCB mounting fuse holder
Fuse Current:30A
Pin terminal
External depth 54.8mm
Operating temperature -40 to +85°C
External length/height 16.5mm
Flammability rating UL 94V-0
Head diameter:19mm

Approvals

UL, VDE, CSA

Schurter Fuse Holder

The Schurter FUP series horizontal surface mount with separate slotted cap fuse holder has an electrical rating of 500VAC and 16A supply voltage. It provides the installation hardware for a fuse and preventing accidental misuses in the circuit. It includes a 6.3x32mm cartridge type. The fuse carrier with handle and knob are spring-loaded bayonet type with screwdriver slot. It has a low profile fuse block with protection walls.

Features and Benefits

• Fuse carriers are easily replaceable
• It has a 4W high rated power acceptance
• Operating temperature ranges between -40°C and 85°C
• Screwdriver soldering
• Shock safety
• Thermoset is used as a body material

Applications

• Electronic equipment
• Household appliance
• Industrial equipment
• 3-phase supply equipment
• Used in office equipment

Certifications

• CSA 4248-1 / no. 3
• IEC 60127-6
• UL 4248-1 / UL 512 listed
• UL File Number: E39328 listed
• VDE Certificate Number: 40010391

PCB Mounting

Voltage Rating 250V.

FUP Shock-Safe Fuseholder, 5 x 20 / 6.3 x 32 mm, Slot Knob, horizontal Data Sheet
