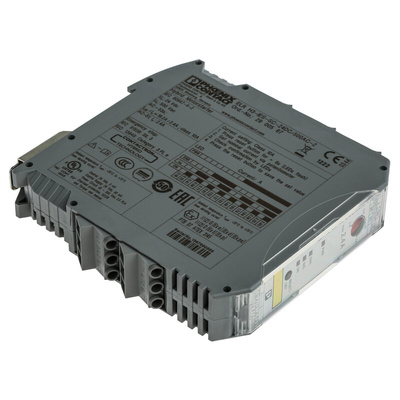

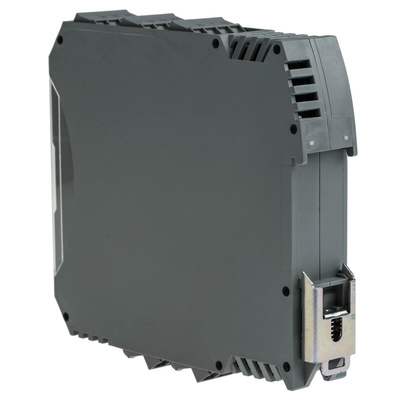

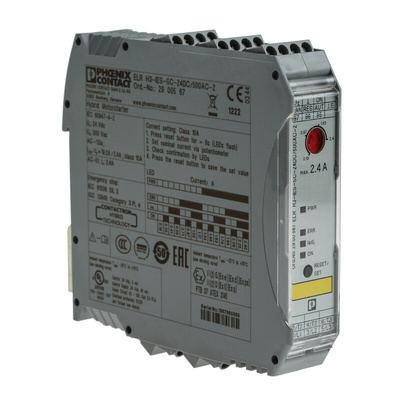

2900567, Phoenix Contact Motor Starter, 1 kW, 24 V dc, 3 Phase, IP20, 2.4 A

Phoenix Contact CONTACTRON '3 in 1' Hybrid Motor Starters

The Phoenix Contact ATEX approved, ELR series of Contactron 3 in 1 hybrid motor starters.The forward running motor starters are designed for DIN Rail mounting and for starting 3 phase motors up to 500 V ac where adjustable overload shutdown and emergency stop function is to safety integrity level 3 (SIL 3) and performance level E (PL e).

Features and Benefits

• ATEX approved
• IP20 protection
• Screw connection
• Adjustable overload shutdown
• Emergency stop to SIL 3/PL e
• Needs little space (only 22.5 mm wide)
• Less wiring time and expense (up to 75% less wiring time compared to conventional contactors)
• Easy DIN rail mounting
• Low-wear switching
• Adjustable current for bimetal function
Standards
IEC 60947-1, IEC 60947-4-2, IEC 61508, ISO 13849, ATEX

Phoenix Contact 3-Phase Hybrid Motor Starter, 24V DC, 1kW Power Rating - ELR H3-IES-SC- 24DC/500AC-2 - 2900567

Looking for a reliable, low-maintenance component to switch your 3-phase motor equipment on and off? Choose this hybrid motor starter from Phoenix Contact. It also functions as an overload relay to cut off power under high currents, preventing damage to the machine. For added safety, it has an emergency stop function in case of malfunction.
Multiple LED signals let you monitor the operating voltage and status of this device, making it easy to diagnose any faults. A low 1kW power rating means it consumes minimal energy while the 0.88W power dissipation indicates little waste so it's an efficient choice. You can mount the unit vertically or horizontally on a DIN rail, making it versatile and easy to install. Use this motor starter in industrial applications like pumps, mixers and conveyor belts.

• ATEX approved for safe use in hazardous places
• IP20 (ingress protection) rating indicates it's touch-proof
• Wide operating temperature range between -25°C and +70°C to withstand hot and cold settings
• Shock and vibration resistant for durability when used with heavy-duty equipment
