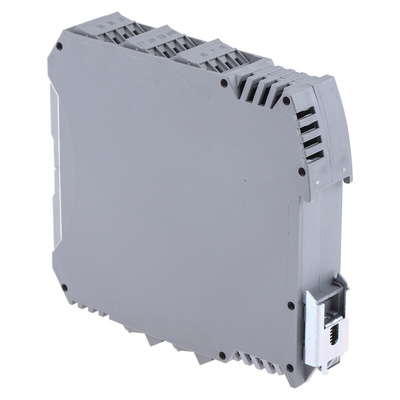

2900569, Phoenix Contact Motor Starter, 4 kW, 24 V dc, 3 Phase, IP20, 9 A

Phoenix Contact CONTACTRON '3 in 1' Hybrid Motor Starters

The Phoenix Contact ATEX approved, ELR series of Contactron 3 in 1 hybrid motor starters.The forward running motor starters are designed for DIN Rail mounting and for starting 3 phase motors up to 500 V ac where adjustable overload shutdown and emergency stop function is to safety integrity level 3 (SIL 3) and performance level E (PL e).

Features and Benefits

• ATEX approved
• IP20 protection
• Screw connection
• Adjustable overload shutdown
• Emergency stop to SIL 3/PL e
• Needs little space (only 22.5 mm wide)
• Less wiring time and expense (up to 75% less wiring time compared to conventional contactors)
• Easy DIN rail mounting
• Low-wear switching
• Adjustable current for bimetal function
Standards
IEC 60947-1, IEC 60947-4-2, IEC 61508, ISO 13849, ATEX

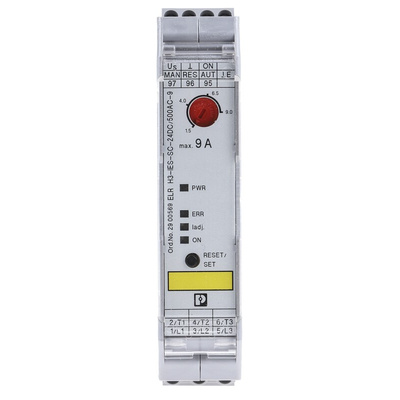

Phoenix Contact 3-In-1 Hybrid Motor Starter, 24V DC, 4kW Power Rating - ELR H3-IES-SC- 24DC/500AC-9 - 2900569

This hybrid motor starter from Phoenix Contact is designed to safely turn 3-phase motor equipment on and off. It prevents damage in case of current overload and has an emergency stop button for use in the event of a hazard. LED signals let you easily monitor the status of the device and alert you to any errors. An operating voltage rating of 500V AC means you can use this motor starter in heavy-duty industrial applications, while its rated surge voltage of 6kV protects it from electrical malfunction.
This starter's modular design eliminates the need for complex wiring, so you'll find it easy to install. Its slim 22.5mm width means it fits easily on a panel and can be packed alongside additional starters. As the unit is ATEX certified for use in hazardous places, you can rely on it in demanding applications, such as material handling and industrial pumps.

• IP20 (ingress protection) rating means you're protected from contact with live electrical parts
• Low power rating of 4kW for energy-efficient use
• Wide operating temperature range between -25°C and +70°C for use in demanding environments
• DIN rail mounting means it can be installed horizontally or vertically for convenience

Datasheet 2900569

Line Drawing - 2900569

Installation Sheet - ELR H3-IES
