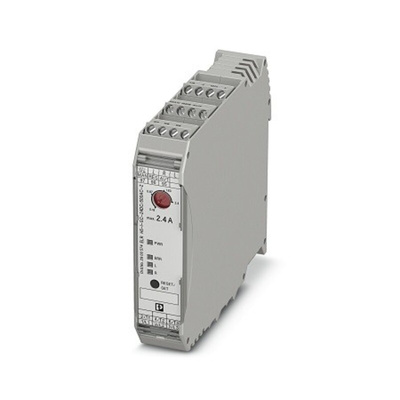

2900574, Phoenix Contact Motor Starter, 1 kW, 500 V ac, 3 Phase, IP20, 2.4 A

Phoenix Contact CONTACTRON '3 in 1' Hybrid Motor Starters

The Phoenix Contact ATEX approved, ELR series of Contactron 3 in 1 hybrid motor starters.The forward running motor starters are designed for DIN Rail mounting and for starting 3 phase motors up to 500 V ac where adjustable overload shutdown and emergency stop function is to safety integrity level 3 (SIL 3) and performance level E (PL e).

Features and Benefits

• ATEX approved
• IP20 protection
• Screw connection
• Adjustable overload shutdown
• Emergency stop to SIL 3/PL e
• Needs little space (only 22.5 mm wide)
• Less wiring time and expense (up to 75% less wiring time compared to conventional contactors)
• Easy DIN rail mounting
• Low-wear switching
• Adjustable current for bimetal function
Standards
IEC 60947-1, IEC 60947-4-2, IEC 61508, ISO 13849, ATEX

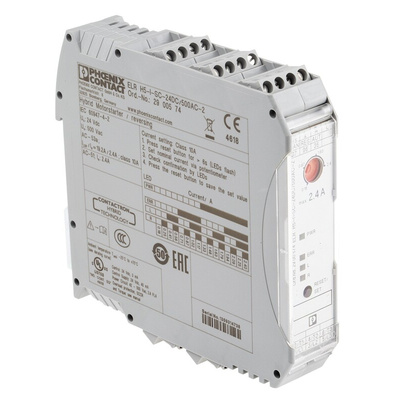

Phoenix Contact Motor Starter, 2.4A Current Rating, 1kW Power Rating - ELR H5-I-SC- 24DC/500AC - 2900574

By using this hybrid motor starter from Phoenix Contact, you can protect your equipment from harm caused by electrical surges. It's a 3-phase device with a reversing capability feature and current monitoring so it can run in both forward and reverse directions while also protecting against motor overload. A 500V AC operating voltage and a 2.4A output current make it a good fit for low-voltage applications.
The amount of cabling required is kept to a bare minimum thanks to the unit's internal locking circuit and load wiring. This hybrid motor starter has an IP20 (ingress protection) rating, which means it offers protection from dust and other foreign bodies over 12mm in size, so you can use it in rugged and harsh settings. As the unit has been thoroughly tested and ATEX-approved for use in hazardous environments, you can safely use it in industrial electrical installations.

• Compact dimensions of 106.6 (length) x 22.5 (width) x 113.7mm (depth) for space efficiency in small enclosures

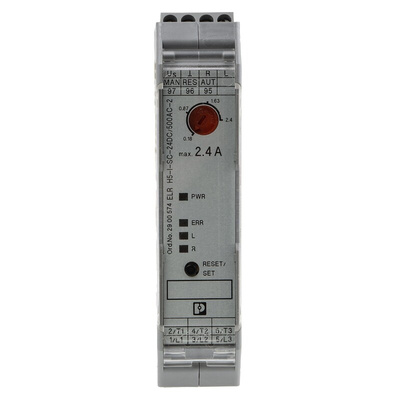

• Potentiometer for nominal current parameterisation to ease monitoring
• DIN rail mounting is easy and tool-free, saving time and effort
