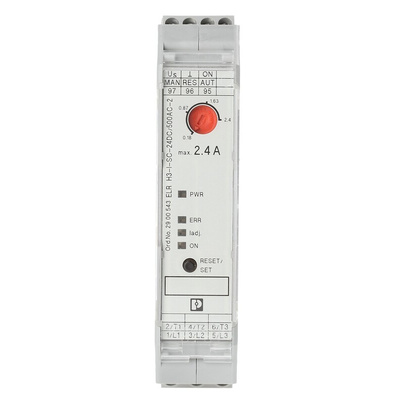

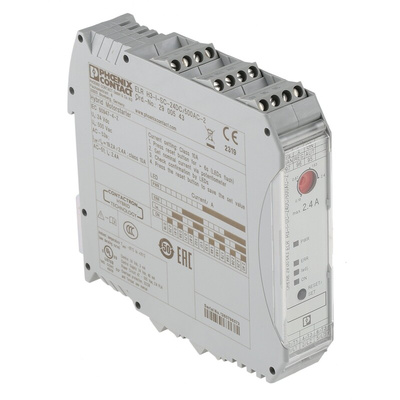

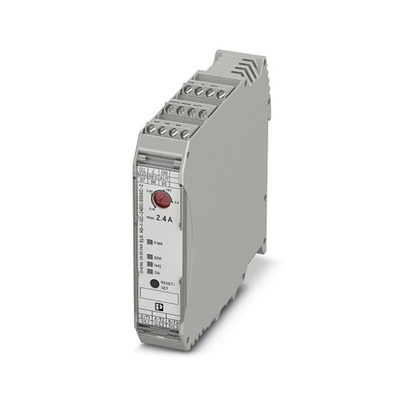

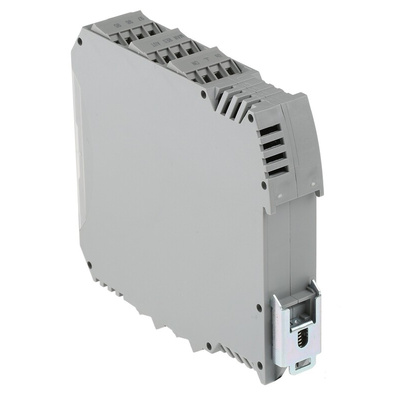

2900543, Phoenix Contact Motor Starter, 1 kW, 500 V ac, 3 Phase, IP20, 2.4 A

Phoenix Contact CONTACTRON '2 in 1' Hybrid Motor Starters

The Phoenix Contact ATEX approved, ELR-H3 series of Contactron 2 in 1 hybrid motor starters gives forward only protection. They are designed for DIN Rail mounting and for starting 3 phase motors up to 500 V AC.

Features and Benefits
• ATEX approved
• IP20 protection
• Screw connection
• Adjustable overload shutdown
• Needs little space (only 22.5 mm wide)
• Less wiring time and expense (up to 75% less wiring time compared to conventional contactors)
• Easy DIN rail mounting
• Wear-free fast switching

Standards
EN 60947-1, EN 60947-4-2EN 50178, IEC 61508, ISO 13849, ATEX

Phoenix Contact Motor Starter, 2.4A Current Rating, 24V DC Voltage Rating - ELR H3-I-SC- 24DC/500AC - 2900543

Use this hybrid motor starter from Phoenix Contact to efficiently manage the power supply to your industrial motors. This electromechanical device features a contactor that switches the motor on and off, eliminating the need for manual controls. It operates within a temperature range of -25°C to +70°C, so it's a practical choice for demanding environmental conditions.
The starter has reverse polarity protection in its input and control circuits to shield you from electric shocks that could result from a wrong connection. Its yellow and red LED indicators show you its operating state, so monitoring and troubleshooting are easy. You can easily install it in tight spaces as it has a narrow width of 22.5mm. With a 6kV rated surge voltage, you can rely on this device to handle sudden power spikes, making it suitable for use in volatile applications. You'll find it commonly used in heating, ventilation and air-conditioning systems.

• IP20 (ingress protection) rated for protection against dust and other particles larger than 12mm in size
• Protective circuit has a typical turn-off time of less than 30ms for a quick response to faults
• Metal lock for secure mounting onto a DIN rail

Datasheet
