NC3MD-L-B-1, Neutrik Panel Mount XLR Connector, Male, 50 V, 3 Way, Gold over Nickel Plating, Разъем

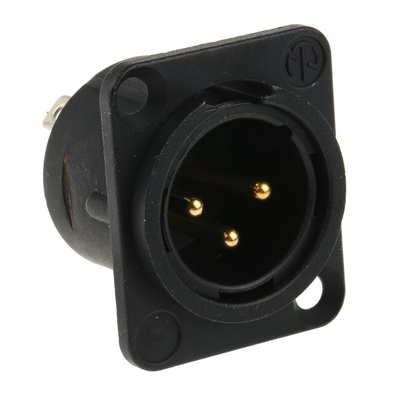

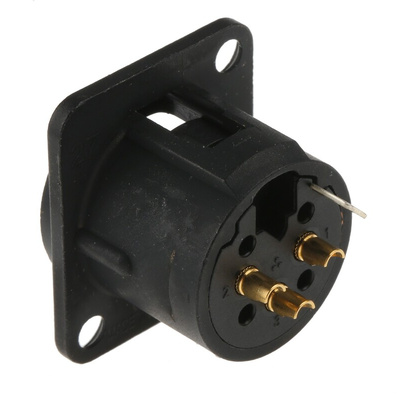

Neutrik XLR Connector

The Neutrik DL series male XLR connector has three contacts with gold over nickel plating. It has a current rating is 16A and the voltage rating is 50V. This panel-mount XLR connector can be mounted in either the front or rear of a panel. With a simple screw mount frame, this XLR connector is easy to install and features a locking mechanism that ensures reliable mating.

Features and Benefits

Black metal shell offers RF protection
Robust "D" metal shell
Solder cups for easy termination
Standardized D size 24mm panel cut out
Housing material is zinc
Operating temperature ranging between -30°C and 80°C

Certifications

UL approved
UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20

NC3MD-L-B-1 Datasheet
