NC4MRX-B, Neutrik Cable Mount XLR Connector, Right Angle, Male, 50 V, 4 Way, Gold over Nickel Plating, Разъем

Neutrik XLR Connector

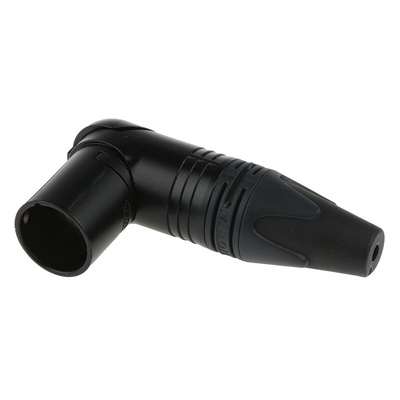

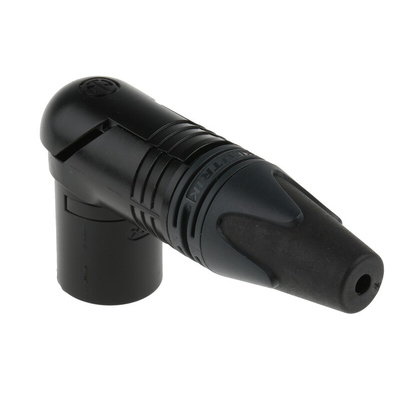

The Neutrik 4-contacts right-angled male XLR cable connector has a voltage rating of 50V and a current rating of 10A. This connector has a gold over black metal plating. It offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Warning:
Not to be used as mains connectors

Features and Benefits

7 selectable cable outlet positions
Boot with polyurethane gland gives high protection to cable bending stresses
Branded with a unique hologram guarantees genuine and authentic Neutrik product
Coloured rings and boots available for coding or identification
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Male connector with improved locking recess without "window", more stringent housing increases durability
Operating temperature ranging between -30°C and 80°C
Sleek and ergonomic design makes it handy
Unique cage design of female contact for low contact resistance and high integrity

Certifications

UL approved

NC4MRX-B Data Sheet
