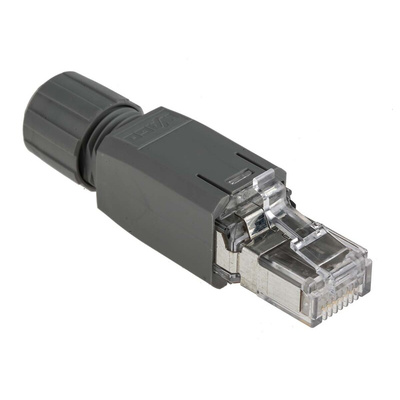

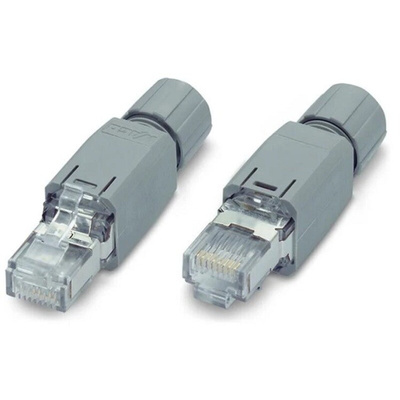

750-975, Wago Connector for Use with Field Assembly

Wago Connector, For Use With Cat5e Ethernet Cables, 10g Weight - 750 Series - 750-975

Wire up your Ethernet cable with this RJ45 connector from Wago. By attaching it to your Cat5e Ethernet cable, you get a nifty assembly that allows you to plug internet-enabled devices straight into hardware like a router or modem. Thanks to its brass shielding, the component blocks EMI and ensures your signals remain crisp and clear. A broad operating temperature range between -20°C and +70°C assures you this product can handle the heat in harsh environments.

Features & Benefits

• Compact dimensions of 14 (H) x 14 (W) x 59mm (D) to add minimal bulk to your cable
• Rated for a maximum of 1000 mating cycles to withstand frequent plugging and unplugging
• Light weight of 10g to minimise strain on the cable
• IP20 rating means it's touch-proof and protected from objects larger than 12mm

Applications

• Computer networking
• Telecommunications
• Digital data processing
• Audiovisual equipment

What conductor sizes is this unit compatible with?

This versatile unit is designed to accept solid conductors ranging in size between 0.13 and 0.24mm² and stranded ones ranging in size between 0.14 and 0.36mm².

Ethernet RJ-45 connector 10/100 mbit/s
