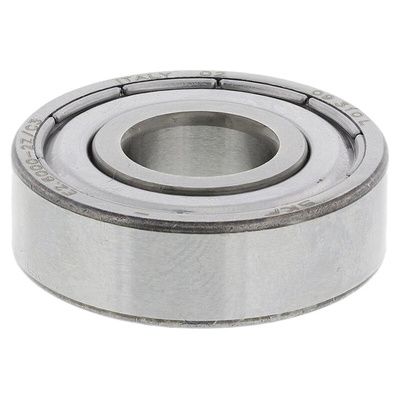

SKF E2.6000-2Z/C3 Single Row Deep Groove Ball Bearing- Both Sides Shielded 10mm I.D, 26mm O.D, Шарикоподшипник

SKF Ball Bearing, Plain Race, Deep Groove, 10mm ID, 26mm OD - E2.6000-2Z/C3

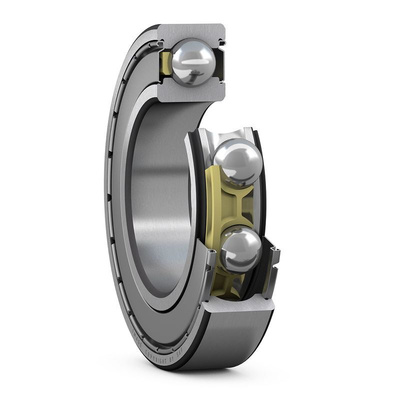

Increase the lifespan of your electric motor with this ball bearing from SKF. It's a deep-groove type and is designed to deliver low-friction movement that supports radial and axial loads and reduces the stress on your motor. The unit has a fibreglass-reinforced polymer cage and greased balls to minimise heat generation and reduce friction further. Shielded ends hold lubrication inside the bearing and help to keep dust particles out. This means you can use it in contaminated environments and keeps it running smoothly with little maintenance needed.

• Cylindrical shape makes it easy to install
• Comes ready assembled in one unit for speedy machine builds and repairs
• Steel balls are strong and resistant to corrosion, for reliable use in damp conditions
• Limiting speed of 36,000r/min makes it suitable for electric motors up to 37kW

Applications

• Conveyors and rollers
• HVAC systems
• Industrial automation
• Domestic appliances

What loads can this ball bearing handle?

This ball bearing has a static load rating of 1.93kN and a dynamic load rating of 4.62kN, making it suitable for low-load and medium-load applications.

E2 6000-2ZC3 Data Sheet

SKF Bearing Designations

Datasheet - E2.6000-2Z/C3
