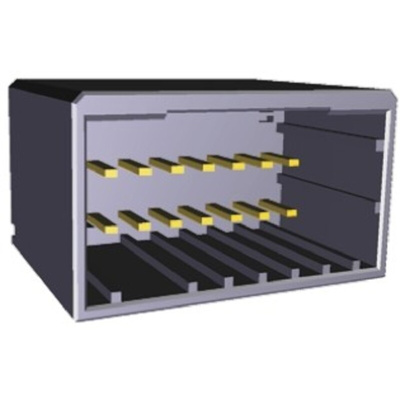

1747994-1, TE Connectivity Dynamic 2000 Series Straight Through Hole PCB Header, 16 Contact(s), 2.5mm Pitch, 2 Row(s), Shrouded

Dynamic 2100 Headers

The TE Connectivity Dynamic Range D-2100 Series Headers have a Tin plated Retention Leg for increased stability. The PCB solder tails of the D-2100 Series Headers are Tin plated and the contact Tabs are Gold plated. The recommended PCB thickness for these D-2100 Series Headers is 1.6 mm.

Note

For mating D-2100 Series Housings see stock number 719-0135 typical.

TE Connectivity Dynamic 2000 Series

The D-2000 Series connectors are mainly for signal applications and incorporate a Keying system to prevent mis-mating. These D-2100 Series connectors have a 2.5 mm pitch with a maximum Voltage Rating of 250 Vac and a maximum Current Rating of 5 A with both ratings being dependent upon the number of ways and wire size used.

Header vert 16w 2row TAB 2.5mm X key D-2
