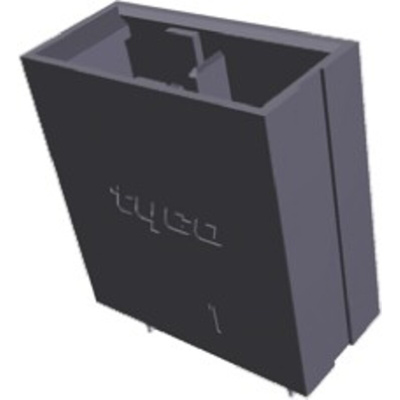

1-1747277-3, TE Connectivity Dynamic 4000 Series Straight Through Hole PCB Header, 3 Contact(s), 6.35mm Pitch, 1 Row(s), Shrouded

Dynamic 4200 Headers

The TE Connectivity Dynamic Range D-4200 Series Headers have a Tin plated Retention Leg for increased stability. The PCB solder tails of the D-4200 Series Headers are Tin plated and the contact Tabs are Gold plated. The recommended PCB thickness for these D-4200 Series Headers is 1.6 to 2.4 mm.

Note

For mating D-4200 Series Housings see stock number 720-1610 typical.

TE Connectivity Dynamic 4000 Series

The D-4000 Series connectors incorporate a Keying system to prevent mis-mating. These D-4200 Series connectors have a 6.35 mm pitch with a maximum Voltage Rating of 600 Vrms and a maximum Current Rating of 23 A with both ratings being dependent upon the number of ways and wire size used.

Header vert 3 way TAB 6.35mm X key D-4
