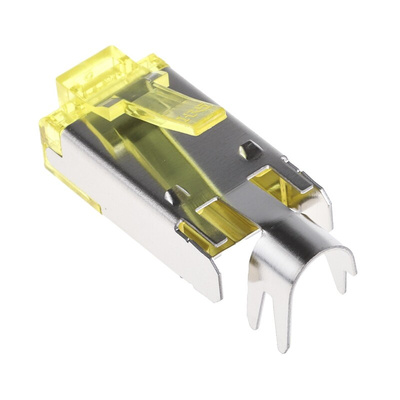

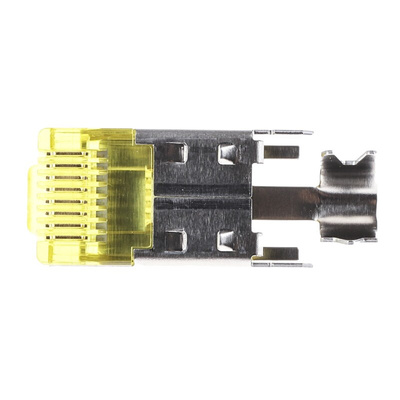

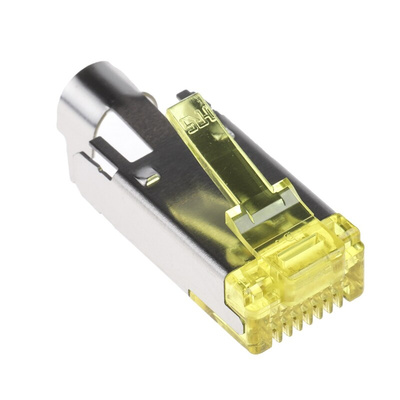

TM31P-TM-88P(71), Hirose TM31P Series Male RJ45 Connector, Cable Mount, Cat6a, Разъем

Hirose TM31P Series Cat6a RJ45 Modular Plug Connectors

TM31P series Cat6a RJ45 modular plug connectors that support high-speed LAN transmissions and suitable for use in 10G Ethernet applications. These RJ45 plug connectors feature a metal shield that offers 360° protection against EMI. When mated this shield makes a secure connection the shield in the mating connector to provide a continuous circuit. The flexible casing of the connector extends over the release tab protecting it against breakage. The one piece cover can be easily removed to allow access to the termination area.

Features and Benefits

• Supports 10G Ethernet high-speed LAN transmission
• 360° shielding against EMI
• Protected latching tab
• Removeable one piece cover
• Easy termination of conductors using simple tool

Standards

Conforms to Cat.6A requirements of ISO/IEC 11801, confirmed by GHMT

TM31P-TM-88P(01).

TM31P-TM-88P(02).

Datasheet-TM31P Series

Hirose-TM31P-TM-88P(71)-datasheet
