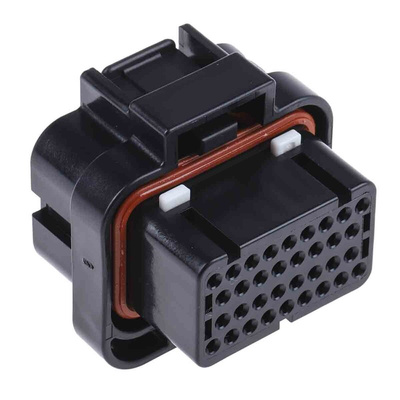

2-1437285-3, TE Connectivity, SUPERSEAL Automotive Connector Plug 34 Way

7199674
Номер производителя: 2-1437285-3Производитель: TE Connectivity
Цена за шт.
3720.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TE Connectivity SUPERSEAL Series 1.0 mm Plug Housing Assembly

Introducing the Superseal series of plug housings from TE Connectivity. Durable & reliable design, facilitating the mounting between your PCB boards, either through cabling/wiring or fitting further PCB boards together. The Superseal series has a contact size of 1 mm. and comes as either right-angle or straight body orientation.

Features and Benefits
• Durability: After cap housing is connected, the plug housing is mated and then 78.4 N force is applied in a rocking motion. 25 test cycles.
• Thermoplastic / PET housing for reliable performance/resistance. The outer material is lightweight and allows design flexibility.
• The SUPERSEAL series has built-in secondary locking mechanisms which facilitate contact insertion into the housing, thus preventing the contacts from backing out during mating.
• Polarization key as standard, helping prevent the insertion of another circuit board unless properly slotted in.
• A varied amount of contacts (26, 34 & more) suitable in a wide array of industrial sockets.
• 3 mm pitches available.

Applications
• Industrial controls
• Networking systems
• Some household appliances

Техническая спецификация
pdfSuper Seal Plug,4row,34way skt contacts
pdfInstruction Sheet
pdfAMP Superseal Connectors 1.0 mm System Catalogue
pdfTE Catalog - Selector
Высота:
38мм
Глубина:
32.15мм
Кол-во контактов:
34
Количество рядов:
4
Материал корпуса:
PET
Род:
Male
Серия:
Superseal
Тип:
Automotive connector housing
Тип монтажа:
Кабельное крепление
Цвет:
Черный
Ширина:
38.2мм
