45984-4422, Molex EXTreme LPHPower Series Right Angle Through Hole Mount Heavy Duty Power Connector, 20-Contact, 2.5mm Pitch,

Low Profile Hybrid PCB Receptacle

These EXTreme LPHPower hybrid PCB receptacle power connectors combine mixed power and signal contacts for high current board to board applications. The low profile 7.50mm design of these PCB receptacle power connectors improves system airflow and provides 127.0A per linear inch. These low profile hybrid PCB receptacles also have two isolated power contacts per housing bay allowing power and return circuits in a single bay for a total of 60.0A per power bay. The EXTreme LPHPower hybrid PCB receptacles mate with low profile Hybrid PCB headers, see stock number 720-0361 typically

Molex EXTreme LPHpower Range

LPH Rcpt RtAn 04 Pwr 16 Sig Peg+Guide

Datasheet

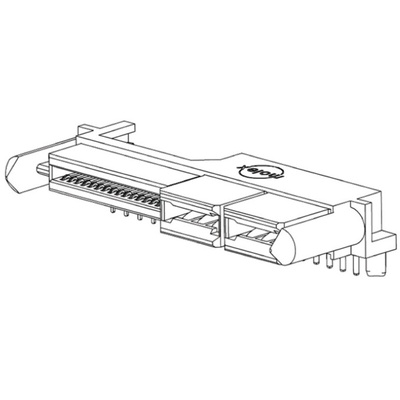

Line Drawing
