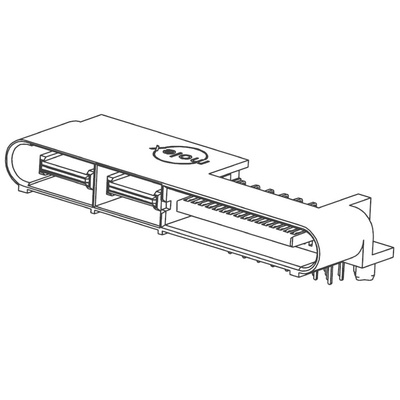

45985-4442, Molex EXTreme LPHPower Series Right Angle Through Hole PCB Header, 28 Contact(s), 1.27mm Pitch, Shrouded

Low Profile Hybrid PCB Header

These EXTreme LPHPower hybrid PCB header power connectors combine mixed power and signal contacts for high current board to board applications. The low profile 7.50mm design of these PCB header power connectors improves system airflow and provides 127.0A per linear inch. These low profile hybrid PCB headers also have two isolated power contacts per housing bay allowing power and return circuits in a single bay for a total of 60.0A per power bay. The EXTreme LPHPower hybrid PCB headers mate with 45984 series receptacles, see stock number 720-0317 typically and the 46114 series receptacles, see stock number 720-0443 typically

Molex EXTreme LPHpower Range

LPH Plug RtAn 04 Pwr 24 Sig Peg+Guide

Datasheet

Line Drawing
