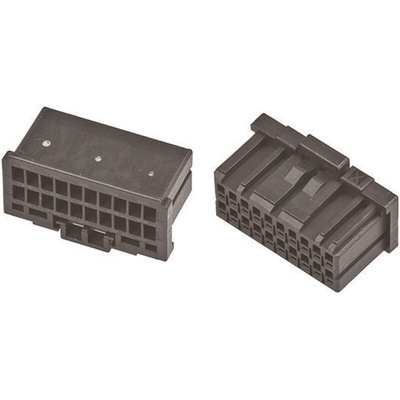

1-1827863-4, TE Connectivity, Dynamic 1000 Female Connector Housing, 2mm Pitch, 28 Way, 2 Row, Корпус разъема

TE Connectivity Dynamic 1100 Series Receptacle Housings

These Dynamic D-1100 series wire to board receptacle housings are part of the Dynamic D-1000 series connector system which is the smallest signal connector in the Dynamic connector range. The compact design of the Dynamic D-1000 series enables it to be used in applications where space saving is required in miniaturized equipment applications. These Dynamic D-1100 receptacle housings have a 2mm pitch and feature a housing lance structure to help prevent contact lance breakage during terminal process handling. A housing lock and keying are incorporated into the design for accurate and secure mating. These housings are also colour coded with the circuit number marked on them for accurate mating identification and wiring.
The socket contacts for these Dynamic D-1100 series wire to board receptacle housings must be purchased separately, see stock number 706-0416 typically

Note

TE Connectivity Dynamic 1000 Series

Housing 28 way Rec 2mm Black D-1

DYNAMIC Series - Quick Reference Guide

DYNAMIC Series Connectors - Catalogue
