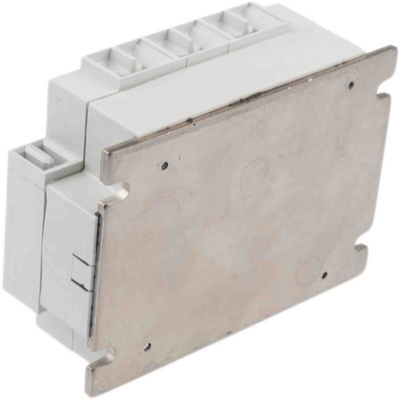

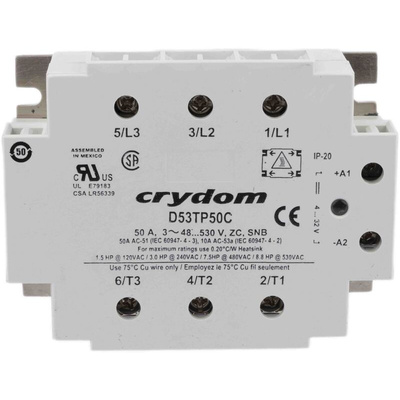

D53TP50C, Sensata / Crydom 53TP Series Solid State Relay, 50 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control, Реле

Sensata | Crydom Solid-State Relay, 101.3mm Length, 50A Rated Load Current - 53TP Series - D53TP50C

Ensure speedy switching of your circuit with this solid-state relay from Sensata | Crydom. Its light-based semiconductors snap circuits open and closed without moving parts, so it cuts down on mechanical wear to keep going strong for longer. You can wire up the device in no time, thanks to its simple screw termination method. As the component comes with built-in transient voltage protection, it shuts down the risk of damage from electrical faults. You'll find SSRs like this one used for controlling data acquisition and material handling systems.

Features & Benefits

• LED indicator clearly shows input status for quick spot-checks
• Turn-on time of 8.33ms means it's up and running in a flash
• Labelled front plate for easy connection identification
• Touch-proof cover for safe handling during installation and inspection
• Compact dimensions of 101.3 (L) x 36.8 (W) x 79.7mm (H) to take up minimal space in your setup

What's the current rating of this SSR?

This SSR has a rated load current of 50A, so it's a go-to choice for heavy-duty industrial applications.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

53TP Series IP20 Data Sheet

Declaration of Conformity 2014/35/EU

Line Drawing - D53TP50C
