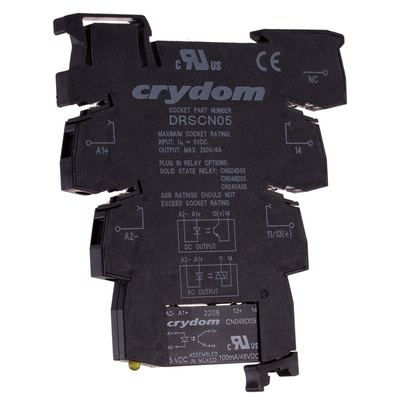

DRA-CN048D05, Sensata / Crydom DRA-CN Series Solid State Interface Relay, 12 V dc Control, 0.1 A Load, DIN Rail Mount, Реле

DIN Rail Mount - DRACN Series

6.2mm DIN-rail mount (35 mm) SSR assembly
Ratings 24Vdc at 3.5A, 48Vdc at 100mA and 240Vac at 2A
5 and 24 Vdc and 120V and 240 Vac control voltage
UL and cUL recognised at 40°C, 100K-cycle endurance test
Yellow LED input status indicator

Approvals

UL, cUL, CE, RoHS

Sensata | Crydom Solid-State Interface Relay, Zero-Cross Switching Type, 20μs Turn-On Time - DRACN Series - DRA-CN048D05

For safe control over a resistive circuit, choose this solid-state interface relay from Sensata | Crydom. Thanks to its zero-cross switching type, it prevents damage caused by a large initial power surge by waiting until the waveform returns to 0V before connecting the output to the load. A fast turn-on time of 20μs offers rapid operation. Thanks to its low typical input current of 6mA at 5V DC, this relay is an energy-efficient choice. You'll find devices like this one used in industrial furnace control, food and beverage processing and power generators.

Features & Benefits

• LED indicator offers status information at a glance
• Compatible with solid or stranded wires ranging in size from 24 to 14AWG for versatility
• DIN rail mounting makes installation easy
• Flame-resistant housing is self-extinguishing for safety in the event of a fire
• Compact dimensions of 80 (L) x 6.1 (W) x 92.6mm (H) for use in confined spaces

Is this component suitable for use in harsh environments?

Yes. This product has a wide operating temperature range between -25°C and +60°C, so it's suitable for use in demanding conditions.

DC Switching

Dra_ Drs series relays and Sockets Brochure

DRACN Series Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Instruction Sheet - DRA-CN048D05
