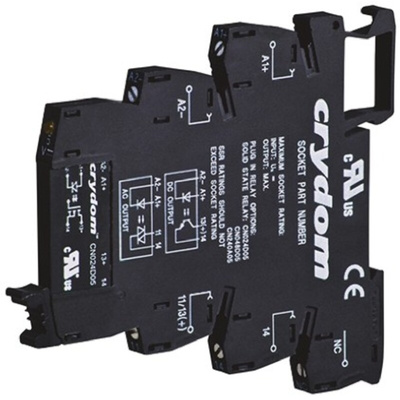

DRA-CN240A05, Sensata / Crydom Solid State Interface Relay, 12 V dc Control, 2 A Load, DIN Rail Mount, Реле

Sensata | Crydom Solid-State Interface Relay, Zero-Cross Switching Type, 92.6mm Length - DRACN Series - DRA-CN240A05

Bolster your system with this solid-state interface relay from Sensata | Crydom. It helps to switch your equipment on and off without any moving parts, so there's minimal wear for long-lasting use. Adding this component as a bridge between your PLC and a contactor protects your control device from the load used to power up the rest of the equipment, keeping your setup safe and sound. It's commonly used for commercial kitchen appliances.

• Clips onto a standard 35mm DIN rail for installation in a snap
• Yellow LED status indicator for fast diagnosis
• Wide operating temperature range between -25°C and +60°C for use in demanding environments

What's the operating voltage range of this device?

It has a wide operating voltage range between 24 and 250V AC, so it's just the thing for use in a wide variety of low-power setups.

What wire size does this component use?

This unit accepts solid and stranded wires between 24 and 14AWG, making it a versatile piece of kit.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
