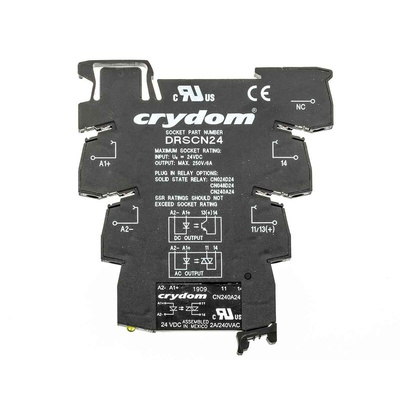

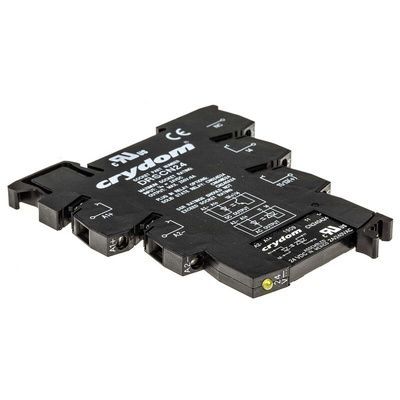

DRA-CN240A24, Sensata / Crydom DRACN Series Solid State Interface Relay, 30 V dc Control, 2 A Load, DIN Rail Mount, Реле

Sensata | Crydom Solid-State Interface Relay, 4mA Off-State Leakage Current, DIN Rail Mounting - DRACN Series - DRA-CN240A24

Looking to flip the switch on the power to your system? Choose this solid-state interface relay from Sensata | Crydom to turn the flow of electricity on and off. A wide operating temperature range between -25°C and +60°C means it holds its own in harsh environments. Mounting is a walk in the park, as you can simply install it on a standard 35mm DIN rail. As it weighs only 31g, it's light as a feather to minimise strain on your equipment. You'll commonly find this unit used in HVAC systems and lighting controls.

Features & Benefits

• Maximum turn-on and turn-off time of half a cycle to minimise downtime
• IP67 rating indicates it's dust-tight and protected against submersion in 1m of water for up to 30 minutes
• Compact dimensions of 92.6 (L) x 6.1 (W) x 80mm (D) to maximise packing space on your rail
• Wide operating voltage range of 24 to 250V AC for versatility

Does this relay have a status indicator?

Yes, it has a yellow LED input status indicator for effortless troubleshooting.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Dra_ Drs series relays and Sockets Brochure

DRACN Series Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Installation Sheet - DRA-CN240A24
