CL240D10, Sensata / Crydom CL Series Series Solid State Relay, 10 A rms Load, Panel Mount, 280 V rms Load, 32 V dc Control, Реле

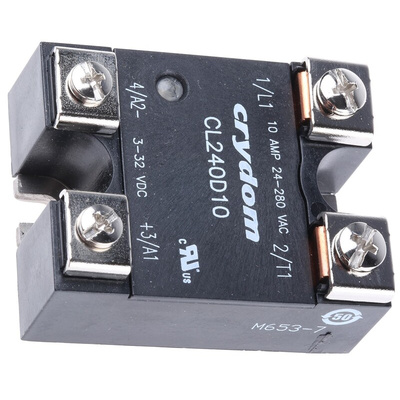

Sensata | Crydom Solid-State Relay, 8pF I/O Capacitance, 1/2 Cycle Turn-On Time - CL Series - CL240D10

For speedy switching capabilities, hand your power management over to this solid-state relay from Sensata | Crydom. It's an efficient choice that quickly gets your operations up and running, thanks to its turn-on time of half a cycle.Solid-state relays are made without moving parts, which means there's less maintenance and minimal wear. This device is made with an aluminium baseplate, so it's armoured against abrasion and corrosion. You can use an SSR like this one in industrial automation and automotive repair applications.

Features & Benefits

• Flame-retardant housing for safety in the event of a fire
• MTBF of 11,641,553 hours at +40°C for long-lasting performance
• Light weight of 81.53g to place minimal strain on your setup
• LED status indicator allows monitoring at a glance
• Broad operating temperature range of -40°C to +80°C for use in harsh conditions

What does zero-cross switching mean?

Zero-cross switching means that the component boots up when the load voltage is near 0V. This makes start-up operations more efficient with minimal noise.

What are the dimensions of this unit?

This product has compact dimensions of 44.5 (L) x 20.1 (D) x 57.2mm (H), so it's a space-efficient choice.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
