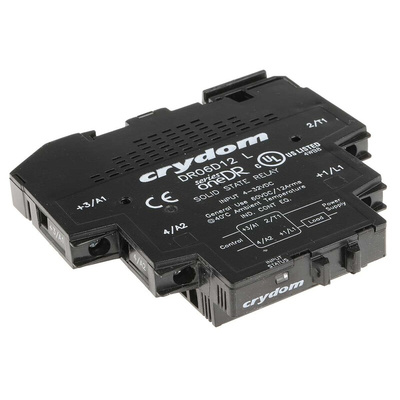

DR06D12, Sensata / Crydom Solid State Interface Relay, 32 V dc Control, 12 A Load, DIN Rail Mount, Реле

DIN Rail Mounting - SeriesOne DR SSRs

Zero voltage and random switching options available
Ratings of 3, 6 & 12 Amps
Load voltage ratings of 2 → 60 Vdc, 2 → 100 Vdc, 24 → 280 Vac and 48 → 600 Vac
Fits standard 35 mm DIN rail
LED input status indicator
AC or DC control voltages
100K-cycle UL 508 endurance rating for enhanced reliability

Approvals

UL, cUL, CE

Sensata | Crydom Solid-State Interface Relay,LED Indicator, 12A Rated Load Current - SeriesOne DR Series - DR06D12

Enhance your switching network with this solid-state interface relay from Sensata | Crydom. Its operating voltage range of 1 to 60V DC makes it a good choice for use in low-power systems. As none of this unit's parts come into contact with each other, the component is less prone to damage from continuous use, so it will last a long time. You'll find relays like this one used in multiplexers, medical equipment and I/O subsystems.

Features & Benefits

• Broad operating temperature range between -30°C and +80°C for use in demanding conditions
• Light weight of 90g to place minimal strain on your equipment
• Designed for DIN rail mounting for ease of installation
• LED indicator for ease of monitoring and troubleshooting

Can this unit perform switching functions faster than an electromechanical relay?

Yes. As solid-state interface relays rely on the electrical and optical properties of semiconductors, they perform switching functions faster than electromechanical relays.

What's the load current range of this unit?

This relay has a load current range between 2.5mA and 12A DC, making it suitable for use in light and medium-duty applications.

Crydom Solid State Relay and Accessories

Seriesone DR Installation Instructions

Datasheet

Declaration of Conformity 2014/35/EU

Line Drawing - DR06D12
