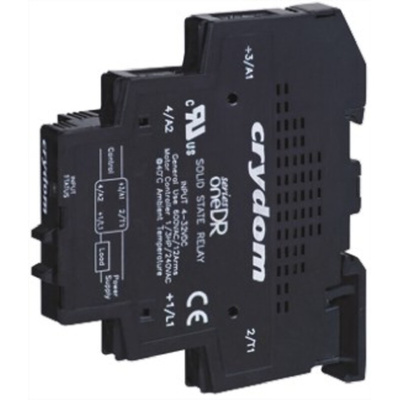

DR24D12R, Sensata / Crydom DR Series Solid State Interface Relay, 32 V dc Control, 12 A rms Load, DIN Rail Mount, Реле

Sensata I Crydom Solid-State Interface Relay, 24 to 280V AC Operating Voltage Range, 90.3mm Height - SeriesOne DR - DR24D12R

Switch to this solid-state interface relay from Sensata | Crydom for reliable on/off functionality in your industrial devices. A maximum turn-on time of half a cycle means it switches on in the blink of an eye. Its high endurance rating of 100,000 cycles means it will be with you for the long run. Relays like this one are typically found in industrial automation and motor control applications.

Features & Benefits

• Wide operating temperature range of -30°C to +80°C for use in challenging conditions
• Compact dimensions of 83.7 (L) x 18 (W) x 90.3mm (H) to take up minimal space on your DIN rail
• Operating voltage range of 24 to 280V AC for use in low-power applications
• Light weight of 90g to place minimal strain on your equipment
• Housing is self-extinguishing for safety in the event of a fire

What's the advantage of using an SSR?

As SSRs have no moving parts, they're less likely to wear down with use, so they're more durable than electromechanical relays.

Approvals

UL, cUL, CE

Instantaneous Switching

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Seriesone DR Installation Instructions

Seriesone DR Brochure

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
