SC 28.11 pro 12V, Muller Digital Time Switch 12 V ac/dc, 1-Channel

Muller Time Switch

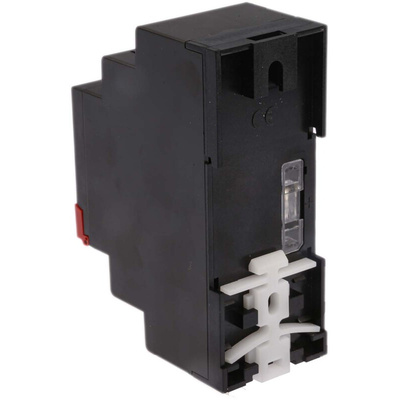

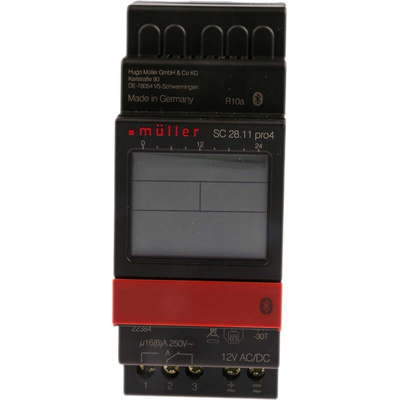

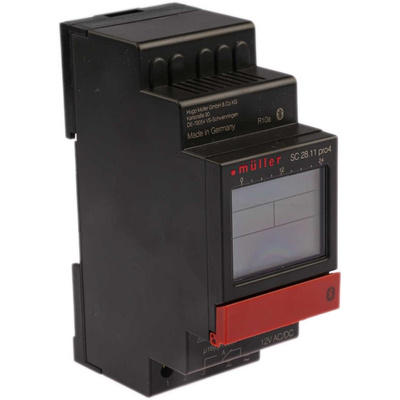

The Muller digital time switch is a programmable single-channel device. It has a single pole double throw(SPDT) contact configuration and LCD display. This surface mount time switch is astronomical with the weekly program and 46 memory locations. It has a voltage rating of 12VAC/VDC. It is programmable with a smartphone via Bluetooth (free iOS and android app) and can be programmed even when supply is disconnected. The timer switch is ideal for industrial applications.

Note:
PC programming package and data-key are not supplied and must be ordered separately, see accessories.

Features and Benefits

A minimum interval of 1 minute
Switching capacity 16A per channel
Manual permanent mode and manual override
Quick and intuitive programming
Zero-cross switching
Automatic sorting of switching times on readout
Unrestricted block programming
Fully automatic daylight saving time
Elapsed time and pulse counter
Pulse and data-key function
Security by pin-code
6-years battery-reserve

Certifications

IP20 rated
VDE

Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
