02-08-2003, Molex MLX Series Male Crimp Terminal, Compression, Crimp Termination, 20AWG Min, 14AWG Max, Контакты

Molex MLX Crimp Terminals, 42024 and 42043 Series

Male pin and female receptacle crimp terminals for use in MLX series plug and socket housings. These terminals have a circular design and the male contacts have a split pin design for a reduction in mating force

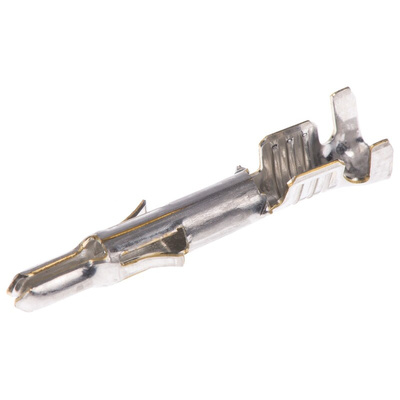

Molex MLX Series Crimp Terminal, Brass, Tin Plating - 02-08-2003

This Molex MLX crimp terminal, featuring brass contact and tin plating, is a reliable and durable solution for various industries. Perfect for applications requiring a male crimp terminal with 14 AWG wire capacity, it offers ease of use and high quality performance.

Features & Benefits

• Robust brass contacts material ensures a reliable connection
• Tin plating enhances durability and longevity
• Specifically designed for MLX connector housing
• Male gender for seamless integration into wiring setups
• Supports wire sizes from 14 AWG to 20 AWG, catering to various needs
• Part of the MLX series with the reputation for excellence in the industry.

Applications

• Ideal for automation systems requiring secure connections
• Perfect for electronics projects where reliable crimp terminals are essential
• Suitable for electrical applications that demand durability and longevity
• Great for mechanical setups requiring easy-to-use components

Can it support both 14 AWG and 20 AWG wire sizes?

Yes, this crimp terminal is designed to securely accommodate wire sizes ranging from 14 AWG to 20 AWG.

Is it suitable for male connectors?

Yes, this crimp terminal is specifically engineered for male connectors, providing a perfect fit for your wiring needs.

Molex MLX Series (0.084in./2.13mm Ø)

Terminal Pin 084-(2.13)dia series Drawing

Datasheet - 02-08-2003
