33000-0002, Molex MX150 Series Male Crimp Terminal, 20AWG Min, 16AWG Max, Контакты

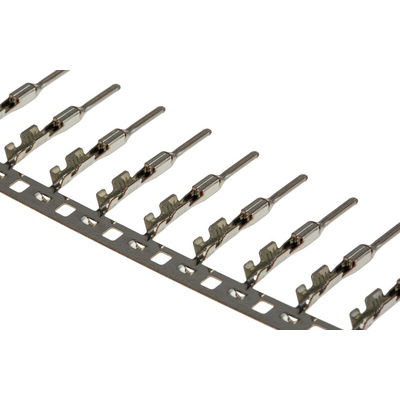

MX150™ Male Crimp Terminals - 33000 Series

Male crimp terminals for the MX150™ connector system. These male crimp terminals are matte sealed, have a low insertion force of 3.0 N (average) and meet USCAR performance testing. The electrical ratings for these male crimp terminals is 250 V, 22 A. These male crimp terminals mate with series 33012 and 33001 female terminals, stock numbers 720-5716 and 720-5713 typically.
For use with series 33472 female connectors, stock number 720-5726 typically.
For use with series 93287 female SRC connectors, stock number 775-4436 .
For use with series 85084 female SRC Hybrid connectors, stock number 775-4445 .

Note

For a range of MX 150 Tooling see stock number 778-6717 typical.

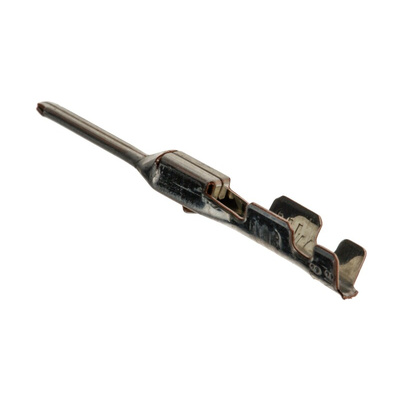

Molex Male Crimp Terminal, 18AWG, 22A Current Rating - MX150 Series - 33000-0002

Keep your automotive and industrial circuits performing efficiently with this crimp contact from Molex. Made from a high-performance alloy, it's mechanically strong and resistant to corrosion and oxidisation. It has a current rating of 22A and accepts wire sizes between 22 and 18AWG, so it's a versatile choice for power and wire-to-wire applications. The terminal has a wide operating temperature between -40°C and +125°C, making it a durable option for process control and vehicle safety system circuits.

• Holds wires with compression for quick and easy connections
• Ribbed crimp tabs create a secure hold to keep your circuits reliable

Applications

• Automotive systems
• Industrial automation
• Marine industry

What type of automotive connectors is this crimp terminal compatible with?

This crimp terminal is compatible with connector housings and sockets in the MX150 Series. This includes the 12-way connector (720-5726) and 84-way automotive socket (775-4436).

What's the best way to get a good crimp on this terminal?

Using a suitable crimping tool will give you the best results when you're attaching a wire to this terminal. The Molex ratchet hand tool (778-6717) is an effective and compatible option.

Molex MX150™ Sealed Connection Systems

Crimp terminal,male,tin plating,16-20awg
