33012-2002, Molex MX150 Series Female Crimp Terminal, 20AWG Min, 18AWG Max, Контакты

MX150™ Female Crimp Terminals, 1.50mm - 33001 and 33012 Series

Female crimp terminals for the MX150™ connector system. These female crimp terminals are matte sealed, have a low insertion force of 3.0 N (average) and meet USCAR performance testing. The electrical ratings for these female crimp terminals is 250 V, 22 A. These female crimp terminals mate with series 33001 male terminals, stock numbers 720-5700 typically.
For use with series 33472 female connectors, stock number 720-5726 typically.
For use with series 93288 female SRC connectors, stock number 775-4448 .
For use with series 85083 female SRC Hybrid connectors, stock number 775-4442 .

Note

For a range of MX 150 Tooling see stock number 778-6717 typical.

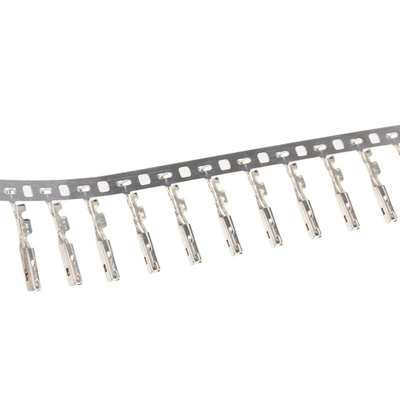

Molex MX150 Female Crimp Terminal, 20 to 18AWG - 33012 Series - 33012-2002

This crimp terminal from Molex makes strong and secure wire-to-wire and wire-to-board electrical joins. It's part of the MX150 series and is designed for use in automotive and commercial vehicle applications. It creates an airtight connection that won't corrode and a mechanically strong join that can bear the shock and vibrations that are to be expected in an automotive context. The terminal accommodates wires with a maximum size of 18 and a minimum size of 20AWG (American Wire Gauge).

• Wide operating temperature range of -40°C to +125°C means it'll withstand hot engines and freezing weather
• Maximum voltage of 14V DC (direct current) for a versatile range of suitable connections
• Comes in a convenient pack of 100 to keep you stocked up

Applications

• Automotive manufacturing
• Haulage and logistics industry
• Boating and marine operations

What is the contact on this terminal made of?

The contact is made from a high-performance alloy (HPA) that delivers durable performance. It's then plated in tin for high conductivity and fast and secure current transmissions.

Molex MX150™ Sealed Connection Systems

Crimp terminal,fem,tin plating,18-20awg

Datasheet

Application Sheet - 33012-2002

Product Specification Sheet - 33012-2002
