33472-2001, Molex, MX150 Automotive Connector Socket 20 Way

Molex MX150 3.50 mm Sealed Automotive Receptacle and Blade Connectors - 33472 and 33482 Series

MX150 high performance sealed automotive receptacle and blade connectors that meet USCAR-2 Class 3 requirements. Meeting this requirement means that these connectors can be used in on-engine, high vibration, under-hood and under chassis environments at class 3 temperatures. These MX150 automotive connectors have a compact housing design and are based on the 1.50 mm ISO blade type terminal system. This terminal system has a low insertion force and offers a high performance connection for mid power applications. The connector seals are designed and tested to IEC IP6K7 and IP67K9K and SAE USCAR-2 Rev 4 standards. Meeting this standard means that the connectors exceed waterproof demands as a true sealed connector system tested under submersed conditions in various fluids. The matte-seals of these connectors provide both waterproof protection and strain relief to the wire seal interface. The connector terminals which require purchasing separately are crimped and poked into the connector. These MX150 automotive connectors are supplied pre-assembled and consist of a housing, grommet cap, a primary lock reinforcement, a matte seal and a ring seal (female only). Versions of these connectors are also available with a CPA (Connector Position Assurance) which only locks when the connector is latched.

Features and Benefits

• Meet USCAR-2 Class 3 requirements.
• Waterproof to IEC IP6K7 and IP67K9K and SAE USCAR-2 Rev 4 standards
• Excellent electrical and mechanical performance
• Compact 3.50 mm pitch housing design
• High performance 1.50 mm ISO blade terminal system
• Easy poke-in terminal insertion
• Matte seal for waterproof protection and strain relief
• Polarization to prevent mismating
• Supplied pre-assembled to save time
• Available with CPA (Contact Position Assurance)

Product Application Information

These MX150 automotive connectors are ideal for SAE and ISO style wire and support both signal and power applications for both automotive and non-automotive applications. Applications include commercial vehicles, recreational vehicles, industrial vehicles and equipment, construction equipment and marine equipment

Note

Meets IPx9K when the following configuration is used: With CPA, With Backshell, With Convoluted Conduit

Standards

USCAR-20 (FCLT) / USCAR-2 Rev 4 / USCAR-21
IEC IP6K7and IP6K9K and SAE USCAR-2 Rev 4

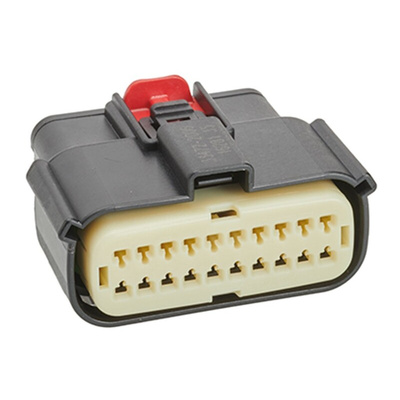

Molex Automotive Connector Socket, 22A Current Rating, 20 Way - MX150 Series - 33472-2001

Use this weatherproof connector socket from Molex to establish secure electrical links in your automotive equipment. The component is designed for parts of your vehicles exposed to environmental elements. Its modified polystyrene alloy material is durable and resistant to impact, so you can use it in harsh environments. This connector socket also has 20 contacts, meaning you can use it to transmit power and data signals to 20 circuits at the same time. It's supplied pre-assembled to save you installation time.

• Wide operating temperature range of -40°C to +125°C for use in demanding environments
• Matte seal provides moisture protection and strain relief
• Polarised design to prevent mismating and ensure quick and precise installation
• Light weight of 21.49g so it's easy to handle and won't strain your equipment

Applications

• Commercial and recreational vehicles
• Industrial machinery
• Marine equipment

Can I use this connector socket on vibrating equipment?

The connector socket has a lock to latch onto the mating part of the connector it's linked to. This ensures a secure and reliable connection and makes this a practical choice for applications where vibrations are common.

Molex MX150™ Sealed Connection Systems

20w MX150 D/R sealed female connector
