39-00-0372, Molex KK 254 Series Female Crimp Terminal, 28AWG Min, 22AWG Max, Контакты

KK CrimpTerminals, 2759T series

This Molex KK 2759T Series crimp terminal, for 22-28 AWG wire, made from Per-plated strip and with B winding direction, has a cantilever design which gives high contact pressure as well as cleaning oxides by its wiping action.
Use with KK 254 2695 Series socket housings stock number 670-1623 or 670-2822 typical.
Use with KK 254 47054 Series crimp housing stock number 720-5990 typical.
For KK 254 Insertion Tool see stock number 710-6528 .
For KK 254 Extraction Tool see stock number 173-3278 .

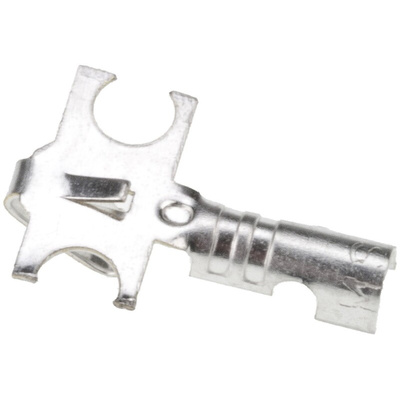

Molex Crimp Terminal, Cantilever Design, Tin-Plated - KK 254 Series - 39-00-0372

To clamp down on a wire and attach it to your PCB, use this crimp terminal from Molex. As it has a cantilever design, part of the barrel extends beyond the crimped area, giving you increased contact pressure between the wire and terminal. This structure supports a wiping action that cleans off oxides to prevent corrosion. To really seal the deal, you can fit this crimp terminal into a connector housing from the KK 254 range to shield it from contaminants.

Features & Benefits

• Brass contacts deliver high electrical conductivity
• Robust tin plating is wear-resistant

Applications

• Security devices
• Data centres
• Aviation engineering
• Control panels

What wire sizes can I fit into this crimp terminal?

As you can fit wires that range in size from 28 to 22AWG into this terminal, it's a versatile connection choice.

Crimp terminal tin plated,22-28 awg
