47054-1000, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 4 Way, 1 Row, Корпус разъема

KK Crimp Housing, 47054 Series

This KK 254 Crimp Housing, 47054 Series, with Polarization Rib uses KK 254 2759 Series terminals stock number 720-5952 typical.

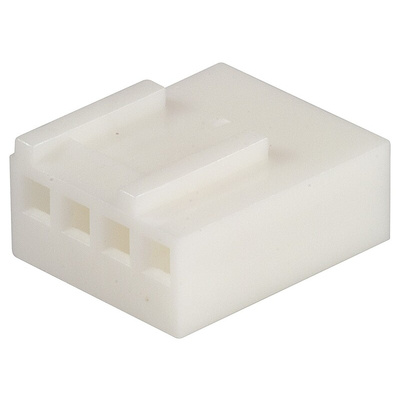

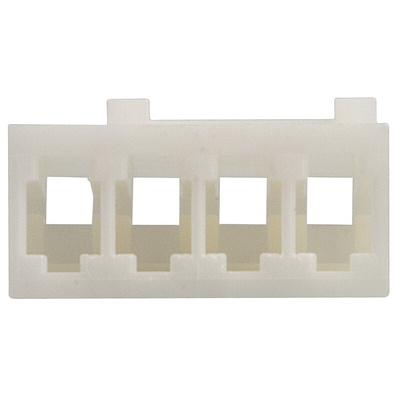

Molex KK 254 Female Connector Housing, 2.54mm Pitch, 4 Contacts - 47054 Series - 47054-1000

Looking for a receptacle that can accommodate and protect multiple connections? Install this female connector housing from Molex on your printed circuit boards (PCBs) to establish secure and reliable wire-to-board connections. The four contacts on the crimp housing let you make up to four connections without needing to stack or add additional housings. It safeguards delicate wires and contacts against impact and corrosion to ensure the optimal transmission of power or data signals between PCBs and other devices.

• Nylon housing material for effective resistance to heat and wear, ensuring long-lasting performance
• Polarisation prevents mismating for reliable connections
• Light weight of 0.522g to reduce bulk on your PCB

Applications

• Data technology sector
• Industrial automation processes
• Pharmaceutical and medical equipment

How much space does this housing take up on a PCB?

This crimp housing has compact dimensions of 10.8 (length) x 5.82 (width) x 12.7mm (depth) and a narrow pitch of 2.54mm. This means it will take up minimal space on a PCB, making it a good choice for use on busy boards where space is limited.
