50148-8000, Molex Mizu-P25 Series Female Crimp Terminal, 22AWG Min, 20AWG Max, Контакты

Molex Mizu-P25 Crimp Terminals, 50147, 50148, 52238 and 50039 Series

50147 Series Male terminals use with 52266 Series Plug housing stock number 720-6274 .
50148 Series Female terminals use with 52213 Series Receptacle housing stock number 720-6270 .
50038 Series Male terminals use with 52266 Series Plug housing.
50039 Series Female terminals use with 52213 Series Receptacle housing stock number 720-6236 typical.

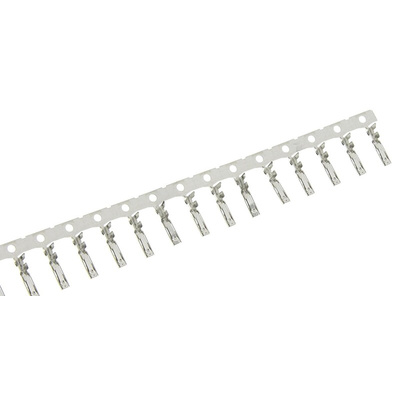

Molex Crimp Terminal, 125V Maximum Voltage, Phosphor Bronze Construction - Mizu-P25 Series - 50148-8000

Need a signal connection that stands up to harsh environments? This crimp terminal from Molex starts you off on the right foot. The spring-beam latch and stabilising bump keep it locked into Mizu-P25 connectors (such as 720-6270), ensuring it's resistant to machine vibrations. These connectors are sealed to keep your crimp terminal and wire connection secure and splashproof. Thanks to a phosphor bronze construction with tin plating, you can trust this terminal is strong and resistant to corrosion, so you get reliable connections.

Features & Benefits

• Accepts both 22 and 20AWG wire sizes for flexibility
• Low-halogen to maximise the fire safety of wiring
• Crimp termination achieves a quick fix

Applications

• Automotive industry
• LED lighting
• HVAC systems
• Vending machines

How can I tell which way the crimp terminal fits into the connector housing?

Thanks to its polarising body, the crimp terminal only fits into the connector housing one way, so mating is error-free.

Molex Splash Proof Range

The Molex Mizu-P25 Sealed Wire-to-Wire range of automotive connectors features a unique seal stopper to provide waterproof protection coupled with a low-insertion force. These Mizu-P25 connectors have friction locks to save space and protect the latch plus polarizing ribs for correct mating on assembly. The Mizu-P25 terminals have a spring-beam design to provide high-pressure with a small-deflection ideal for high-vibration applications. These Mizu-P25 connectors also meet the JIS DO203S2 waterproof compliant standards.

Crimp terminal,fem,tin,s-proof,20-22awg

Mizu-P25™ 2.50mm (.098”) Pitch Miniature Waterproof Connector Systems - Brochure

Datasheet

Application Specification - Miniature Waterproof Connectors
