50147-8000, Molex Mizu-P25 Series Male Crimp Terminal, 22AWG Min, 20AWG Max, Контакты

Molex Mizu-P25 Crimp Terminals, 50147, 50148, 52238 and 50039 Series

50147 Series Male terminals use with 52266 Series Plug housing stock number 720-6274 .
50148 Series Female terminals use with 52213 Series Receptacle housing stock number 720-6270 .
50038 Series Male terminals use with 52266 Series Plug housing.
50039 Series Female terminals use with 52213 Series Receptacle housing stock number 720-6236 typical.

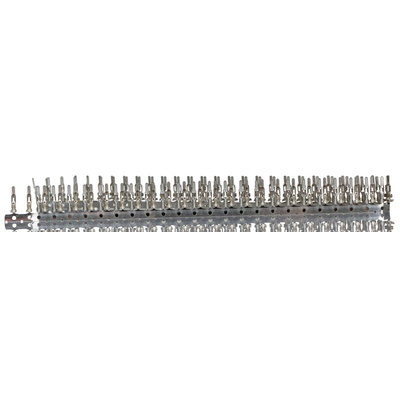

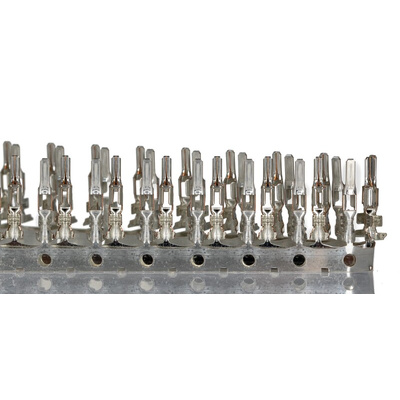

Molex Crimp Terminal, 125V Maximum Voltage, Phosphor Bronze Construction - Mizu-P25 Series - 50147-8000

Want to keep your wire connections under cover? It's easy to slot wiring behind car trims and machine casings with this crimp terminal from Molex. The mini terminal has a 2.5mm pitch and is 10.7mm long and 1.8mm wide at the mating section. Simply clip it into one of the compact Mizu-P25 connectors to make reliable wire connections even in small spaces. Using it makes threading wiring through car doors, mirrors and wipers a piece of cake.

Features & Benefits

• Corrosion-resistant tin plating boosts durability
• Spring-beam terminal design is vibration-resistant
• Polarised body ensures an error-free connection

Applications

• Automotive industry
• HVAC systems
• LED lighting
• Consumer electronics

How can I be sure my signal wire connection will be reliable?

This crimp terminal is made from phosphor bronze that's both highly conductive and strong, so signals are reliable. Compatible Mizu-P25 connector housings have an IP67 rating, indicating they keep your wire connection protected from dust and water.

Molex Splash Proof Range

The Molex Mizu-P25 Sealed Wire-to-Wire range of automotive connectors features a unique seal stopper to provide waterproof protection coupled with a low-insertion force. These Mizu-P25 connectors have friction locks to save space and protect the latch plus polarizing ribs for correct mating on assembly. The Mizu-P25 terminals have a spring-beam design to provide high-pressure with a small-deflection ideal for high-vibration applications. These Mizu-P25 connectors also meet the JIS DO203S2 waterproof compliant standards.

Crimp terminal,male,tin,s-proof,20-22awg

Mizu-P25™ 2.50mm (.098”) Pitch Miniature Waterproof Connector Systems - Brochure

Datasheet

Application Specification - Miniature Waterproof Connectors
