502774-0891, Molex, 503182 8 Way Right Angle Micro SD Memory Card Connector With Solder Termination, Разъем

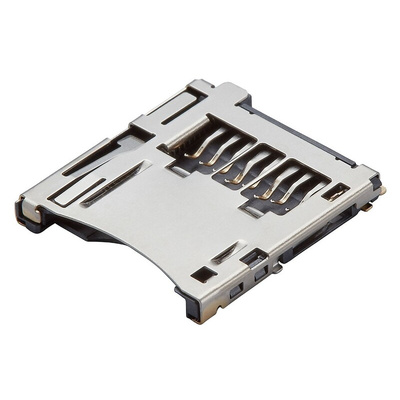

Molex micro SD Memory Card Connectors - 502570 and 502774 Series

502570 and 502774 series micro SD memory card connectors with a 1.10 mm pitch and anti card-sticking features. These memory card connectors feature a push-push mechanism for easy insertion and removal of the SD card and a reliable card detection switch. The housings are designed with card ejection support features that prevent card fly-out and card sticking. A card polarization feature prevents card misinsertion and a ribbed wall on the inner housing protects the tips of the terminals when the card is inserted. The terminals of these micro SD card connectors are bevelled to prevent damage to the terminal during card insertion. Fully shielded stainless steel covers provide protection against EMI interference. Retention features provide a secure connection to the PCB.

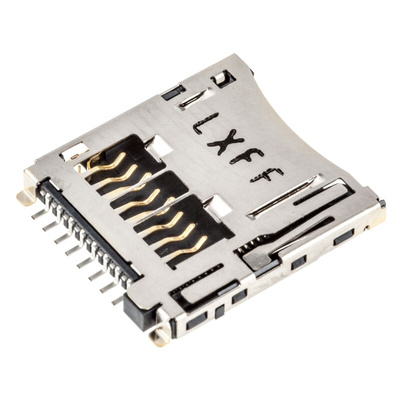

Stock number 720-6075 is a normal mount micro SD memory card connector

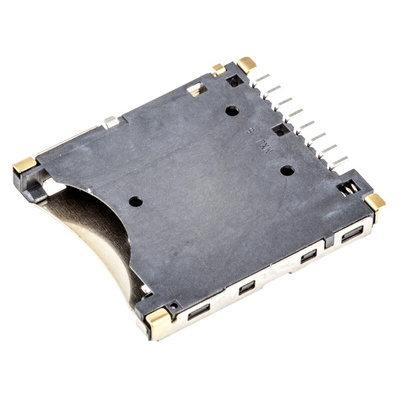

Stock number 720-6072 is a reverse mount micro SD memory card connector

Features and Benefits

• Card ejection support features to prevent card fly-out and card sticking
• Push-push mechanism for easy card insertion and removal
• Card polarization feature
• Card detection switch
• Ribbed inner wall for terminal protection
• Bevelled terminals
• Fully shielded metal covers for EMI protection
• PCB retention features

Product Application Information

These micro SD memory card connectors are suitable for use in mobile phones, portable audio players, digital still cameras, digital video cameras, portable games, car navigation and personal navigators

Molex Right-Angle Micro SD Memory Card Connector with Solder Termination, 1.1mm Pitch, 8 Way - MICROSD CARD Series - 502774-0891

Choose this durable connector from Molex to house and link your memory cards to computers. Copper alloy contacts ensure the component delivers a stable and reliable connection. With gold over nickel plating, these contacts are protected from rust and oxidation, so you can be assured of durability. The connector features a push-push mechanism to let you conveniently insert and remove the memory card. It also has a card detection switch, making it easy to identify the presence of a memory stick.

• Wide operating temperature range of -25°C to +85°C for reliable industrial use
• Compact dimensions of 14.6 (l) x 1.8 (w) x 16mm (d) for space efficiency in small enclosures
• Fully shielded stainless steel covers for protection against electromagnetic interference
• PCB (printed circuit board) retention feature for a secure connection

Applications

• Personal computers and laptops
• Printers
• Digital cameras

What's the mechanical service life of this memory card connector?

The mechanical service life of this connector is 10,000 cycles, so you can rely on it for long-term performance.

Memory Card Connectors

Datasheet

Datasheet

Line Drawing - 502774-0891

Specification Sheet - 502774-0891
