50695-8000, Molex OBD-II Series Female Crimp Terminal, Контакты

Molex OBD-II Terminals, 50420 and 50695 Series

A range of tin plated crimp receptacle terminals for use with OBD-II connector housings. These OBD-II crimp terminals can be used with a variety of wire sizes, please refer to individual datasheets for details.

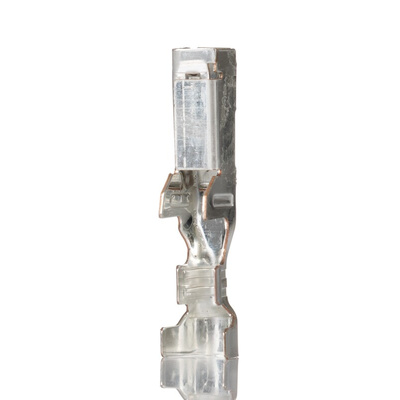

Molex Crimp Terminal, Phosphor Bronze Construction, Accommodates 0.5 to 0.85mm² Wire Sizes - OBD-II Series - 50695-8000

Help power your on-board diagnostics with this crimp terminal from Molex. It has metal arms to hold a conductor and insulation firmly without the need for soldering. This makes wire termination quick and easy when you're against the clock assembling and repairing in-car electronics. The phosphor bronze construction offers high conductivity, as well as resistance to wear and corrosion, to keep your circuitry reliable in harsh conditions.

Features & Benefits

• Accepts 0.5 and 0.85mm² wire sizes for versatility
• Tin-plated mating material boosts durability
• Low-halogen design maximises fire safety

Applications

• Vehicle sensors
• Braking systems
• Engine control units

What are on-board diagnostics?

Modern vehicles have an engine control unit to assess the data from sensors and flag critical issues, such as gearbox and transmission problems. This is known as on-board diagnostics. These issues are relayed to warning indicator lights and diagnostics devices, speeding up repairs and improving safety.

Molex OBD-II Range

The Molex OBD-II (On-Board Diagnostic) connectors are a range for use in the Automotive industry.

OBD-II Crimp terminal,female,tin plated

Datasheet
