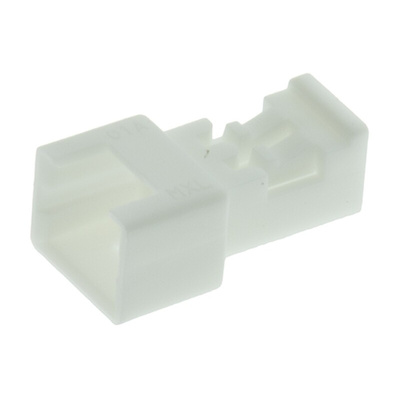

51047-0200, Molex, PicoBlade Male Connector Housing, 1.25mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex PicoBlade™ 1.25mm Wire to Wire Plug Housings, 51047 Series

PicoBlade™ 1.25mm wire to wire plug housing designed for high density harness applications. This 1.25mm wire to wire plug housing is made from polyester and has a mating lock to ensure secure connection to the mating receptacle housing.
Typical applications for these PicoBlade™ plug receptacle connectors include automotive alarm systems, car audio, DVD players, industrial process controllers and patient monitors
Plug contacts for this PicoBlade™ plug housing need to be purchased separately, see series 50125 terminals
For mating connectors see series 51021 wire to wire receptacle housings

Molex Connector Housing, Male, 1.25mm Pitch - PicoBlade Series - 51047-0200

Are you looking for a sturdy male connector housing to support wire-to-wire links in your system? Use this PicoBlade option from Molex. Thanks to its robust polyester housing, the unit is both durable and lightweight, so it's safe for industrial use and won't add strain to your equipment. Once the cable is placed in the plug housing, it's locked in securely, preventing disconnection due to shocks or vibrations.

• Operating temperature range between -40°C and +85°C for use in demanding environments
• Friction lock for a secure fit with PicoBlade receptacle housing in the 51021 series and PicoBlade cable assembly in the 15134 series
• Pitch of 1.25mm for safe isolation of contacts

Applications

• Automotive industry
• Industrial process controllers

Is this housing polarised to mating part?

This unit is polarised to mating part for efficient signal transmission and communication.

1.25mm Wire to Board - Molex PicoBlade™

2w WTW plug housing,1.25mm

Datasheet

Line Drawing

Application Sheet - 51047-0200

Product Specification Sheet - 51047-0200
