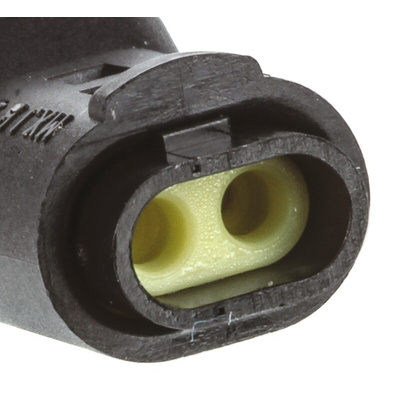

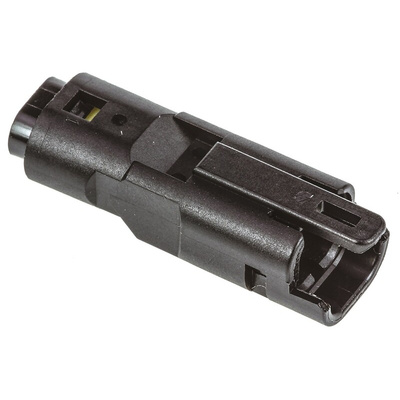

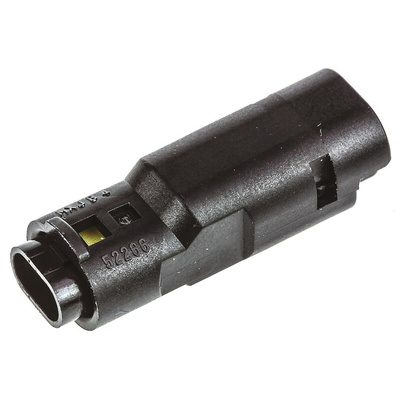

52266-0211, Molex, Mizu-P25 Male Connector Housing, 2.5mm Pitch, 2 Way, 1 Row, Корпус разъема

7206274
Номер производителя: 52266-0211Производитель: Molex
Цена за шт.
1173.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Molex Connector Housing, Wire-to-Wire Application, 8.2mm Length - Mizu-P25 Series - 52266-0211

Use this dust-tight and waterproof connector housing from Molex to securely connect two wires. It has a unique spring-beam design that protects your wires from damage in applications where high vibration is usual. A stabilising bump at the tip secures the terminal in place while you mate the connection. Thanks to a wide operating temperature range between -40°C and +105°C, you can use this connector in harsh industrial environments.

Features & Benefits

• Compact dimensions of 25.2 (D) x 8.2 (L) x 7.25mm (W) to save space in complex setups
• Seal stopper prevents water and dust from getting into the workings and corroding the wires

Applications

• Lighting systems
• Domestic appliances
• Automotive manufacturing

What do I need to assemble this housing connector?

In addition to circuit wires, you'll need a cap-fitting tool to assemble this unit.

Molex Splash Proof Range

The Molex Mizu-P25 Sealed Wire-to-Wire range of automotive connectors features a unique seal stopper to provide waterproof protection coupled with a low-insertion force. These Mizu-P25 connectors have friction locks to save space and protect the latch plus polarizing ribs for correct mating on assembly. The Mizu-P25 terminals have a spring-beam design to provide high-pressure with a small-deflection ideal for high-vibration applications. These Mizu-P25 connectors also meet the JIS DO203S2 waterproof compliant standards.

Техническая спецификация
pdfDatasheet
pdfLine Drawing
pdfApplication Sheet - Mizu-P25
pdfProduct Specification Sheet - 2.5 Mini Waterproof Conn
Длина:
8.2мм
Для использования с:
Splash Proof Wire-to-Wire Plug
Кол-во контактов:
2
Количество рядов:
1
Материал корпуса:
Полиэстер
Ориентация корпуса:
Прямой
Род:
Male
Серия:
Mizu-P25
Тип монтажа:
Кабельное крепление
Шаг:
2.5мм
Ширина:
7.25мм
