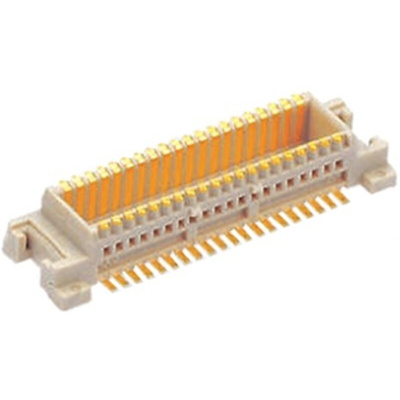

54722-0164, Molex SlimStack Series Straight Surface Mount PCB Socket, 16-Contact, 2-Row, 0.5mm Pitch, Solder Termination

SlimStack™ Micro SMT Stacking Connectors

SlimStack™ Plugs and Receptacles available in stacking heights of:
1.5mm SlimStack™ Receptacles Series 54722 and Plugs Series 55560
3.0mm SlimStack™ Receptacles Series 52991 and Plugs Series 53748
4.0mm SlimStack™ Receptacles Series 52991 and Plugs Series 53916

Gold plated contacts for high reliability connectivity
High density capability
Secure retention against shock and vibration

Molex PCB Socket

The Molex PCB 54722 series surface mount vertical socket with 16 contacts. It has a durable blade-on-beam contact and tails that provide strong solder fillets. The design of the SlimStack board-to-board connector includes a metal friction lock that provides extra mating retention. This makes it ideal for portable applications subjected to vibration or shock. It has a voltage rating of 50V and a current rating of 500mA. The socket has gold- plated phosphor bronze contacts. It is used as portable and handheld equipment.

Features and Benefits

• Pitch size is 0.5mm
• Dual rows
• Large mating guide
• Operating temperature ranges between -40°C and 105°C
• Stacking height is 1.5mm
• Termination method is solder

Certifications

• REACH SVHC
• UL listed

The Molex SlimStack™ family of Micro SMT 0.50 mm stacking Board-to-Board connectors have a durable blade-on-beam contact and tails that provide strong solder fillets. The design of the SlimStack Board-to-Board connectors includes a metal friction lock that provides extra mating retention. This makes these SlimStack Board-to-Board connectors ideal for portable applications subjected to vibration or shock.

16w D/R BTB vertical recept,SMT,0.5mm
