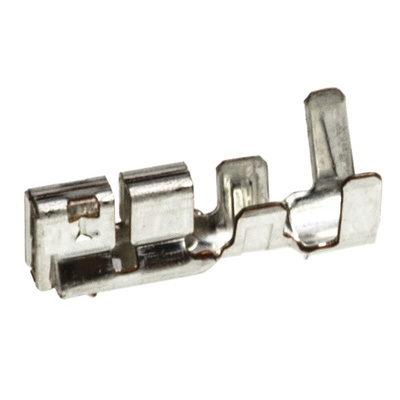

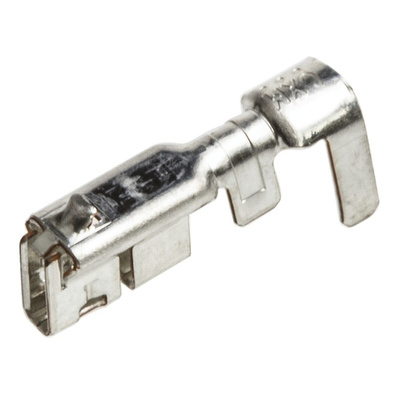

56134-9000, Molex MicroClasp Series Female Crimp Terminal, 26AWG Min, 22AWG Max, Контакты

MicroClasp Terminals, 56134 Series

A range of Molex Series 56134 MicroClasp Terminal Contacts for use in Series 51353 Housings see stock number 406-451 typical.
For Extraction Tool See stock number 699-8142 .

Molex Crimp Terminal, 250V AC/DC Maximum Voltage, Copper-Nickel-Silicone Construction - MicroClasp Series - 56134-9100

Want safe wire connections to your circuit board? Count on this crimp terminal from Molex. It's designed for use with connector housings in the MicroClasp series of 2mm-pitch wire-to-board components. The small pitch makes it ideal for compact PCB applications. Thanks to its copper-nickel-silicone alloy construction, this unit holds its own against impact and corrosion for reliable service in harsh conditions. This material is also lead-free, making it an environmentally safe choice.

Features & Benefits

• Tin plating improves the terminal's resistance to corrosion, so it delivers a long service life
• Comes in a pack of 100, so you have plenty to keep in stock

Applications

• Machine building
• Robotics and industrial automation
• Marine engineering

How much does this terminal weigh?

This crimp terminal weighs just 36mg, so it adds a barely perceptible load to your circuit board.

2.0mm Wire to Board - Molex MicroClasp™ Range

MicroClasp™ 2.00mm pitch Wire to Board system provides space savings and easy mating/unmating compared to similar 2.00mm and 2.50mm pitch Wire to Board systems. MicroClasp™ includes a unique inner positive lock that provides latch protection, secure retention and an audible mating click. The terminal design of the MicroClasp™ series offers low insertion and withdrawal forces and is able to carry 3.0 A current in a compact 2.00mm pitch design.

2.00mm (0.079”) Pitch
Inner Positive Lock
Low insertion force terminal design
Two-point contact design
High-current contact design
Housing lance system
PCB space savings
Latch protection/secure mating/audible “click”
Easy mating/unmating
Carry up to 3.0A
Terminal protection and secure retention
