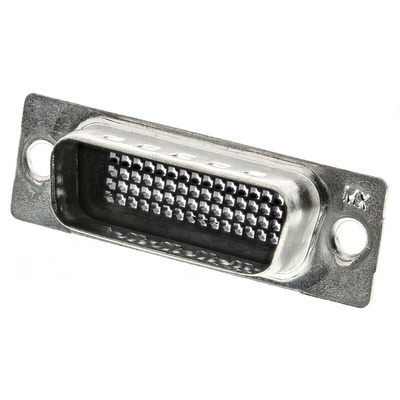

Molex LFH Subassembly, 70929 Series
The 70929 Series LFH Matrix 50 is a 60 way contact system. Use with 70984 Series Terminal Sticks stock number 720-6220 typical.
Molex Low Force Helix (LFH) Range
The Molex Low Force Helix (LFH) contact system is designed for high-pin count, high speed signal requirements for both cable-to-board and board-to-board applications. The low insertion forces make the LFH system an ideal solution where multiple single lines need to be terminated or packaged into a limited space. The LFH Matrix 50 system contact layout is four rows on 1.27 by 1.27mm (.050 by .050") spacing and features I/O shielding and support both vertical and right angle board mounting. Termination is achieved by the wires being welded or soldered directly to the Terminals Sticks.
Техническая спецификация
60w LFH plug cable kit,1.27mmDatasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
